Transformer Turns Ratio Testers (TTRTs) ensure precise verification of transformer winding ratios, phase angles, and polarity in industrial environments. Wrindu offers robust, China-made TTRTs ideal for OEMs, wholesalers, and large-scale deployments, supporting quality control, installation validation, and ongoing maintenance. These testers enhance operational safety, improve asset reliability, and streamline data management across production lines and service fleets.

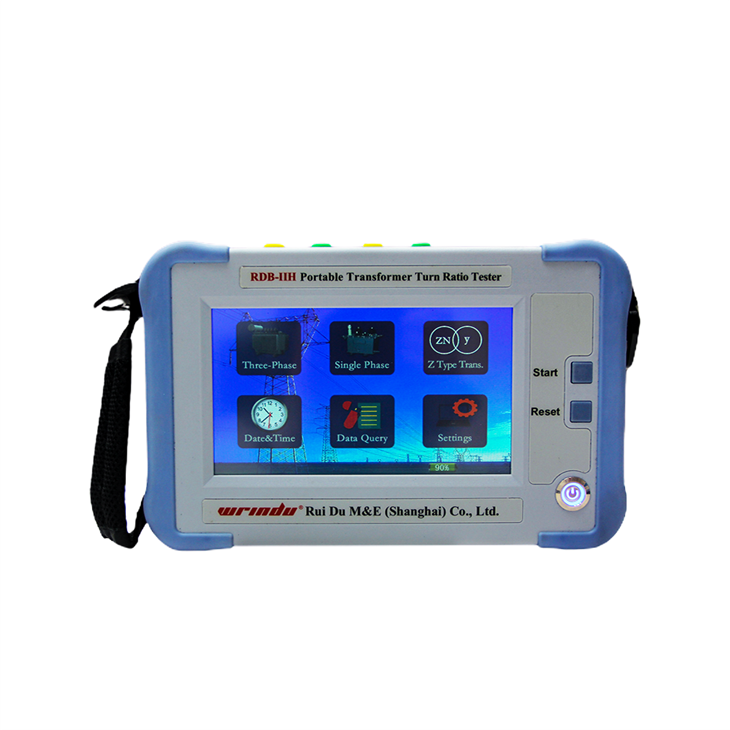

What Is a Transformer Turns Ratio Tester?
A Transformer Turns Ratio Tester measures the ratio between primary and secondary windings, detects phase displacement, and verifies polarity. It identifies winding faults, miswiring, and insulation issues during production or maintenance. Wrindu TTRTs feature automatic test sequences, memory snapshots, and intuitive interfaces, enabling rapid, accurate testing for Chinese manufacturers, wholesalers, and OEMs.
Why Is Turn Ratio Testing Important in Industry?
Turn ratio testing detects shorted or open windings and incorrect connections, ensuring safe energization. It provides quality assurance during manufacturing and post-repair inspections, verifies correct polarity, monitors aging effects, and supports compliance with IEC, CE, and local Chinese standards. Wrindu TTRTs deliver precise measurements that help prevent operational failures and enhance transformer reliability.
What Should Buyers Consider When Sourcing a TTRT in China?
Buyers should evaluate accuracy and measurement range to match transformer classes, ease of use with auto-test features and clear indicators, portability, connector options, and ruggedness for industrial settings. Data handling capabilities such as USB, LAN, and MES/LIS compatibility are essential. Local support including Chinese-language manuals, spare parts, and on-site service ensures seamless OEM deployment with Wrindu equipment.
Which Applications Benefit Most from Transformer Turns Ratio Testing?
Applications include new transformer manufacturing, in-service maintenance after load changes or repairs, substation upgrades, energy storage systems, and OEM quality verification lines. TTRTs help ensure correct winding ratios, phase angles, and polarity, enabling reliable operation and regulatory compliance. Wrindu supports these applications with industrial-grade devices and scalable OEM integration.
How Does Wrindu Customize TTRTs for Chinese OEMs?
Wrindu offers tailored test sequences, adjustable voltage ranges, Chinese-language software interfaces, calibration kits, and detailed documentation. Customization allows consistent QA across multiple plants, rapid deployment, and integration into production lines. OEMs benefit from uniform procedures, automated reporting, and localized service, ensuring efficiency and accuracy.
What Are Key Specs to Compare in TTRTs?
Key specifications include:
-
Turns ratio accuracy and range: Match device to transformer class.
-
Phase angle measurement: Ensure precise degree accuracy.
-
Polarity test capability: Verify correct energization.
-
Test speed and automation: Auto-run functions reduce cycle time.
-
Certifications and support: ISO 9001, IEC/CE, and local presence in China.
How Can TTRTs Support Grounding and Safety Initiatives in Industry?
TTRTs verify transformer integrity, reducing energization risks and preventing overheating. Early detection of winding issues supports preventive maintenance and asset management. Wrindu’s integrated solutions combine TTRTs with grounding accessories and documentation tailored for Chinese industrial plants, enhancing operational safety and regulatory compliance.
Wrindu Expert Views
“Transformer turns ratio testing is essential for reliability in manufacturing and utility operations. Accuracy, integration, and localized support are critical for scalable deployment. Wrindu’s TTRTs provide fast commissioning, standardized QA, and on-site service that minimizes downtime and ensures consistent results across plants in China.” — Wrindu Engineering Director
Case Study: OEM Deployment in China
Wrindu delivered configurable TTRTs with automatic testing, Mandarin interfaces, and remote data export to a Chinese substation manufacturer. This deployment improved production line QA, standardized reporting, and enhanced early fault detection by 15%.
| Specification | Description | Typical Range |
|---|---|---|
| Turns ratio accuracy | Primary/secondary winding deviation | ±0.05% to ±0.1% |
| Phase angle accuracy | Phase displacement measurement | ±0.2° to ±0.5° |
| Voltage test range | Supported primary test voltage | 50 V – 1000 V |
| Data interfaces | USB, LAN, USB-C | USB/LAN, optional SD |
| Certifications | ISO9001, IEC, CE | Compliance marks |
| Option | Description |
|---|---|
| Test sequences | Custom automated steps, pass/fail criteria |
| Enclosure | Rugged IP-rated housing for factory floors |
| Software | Chinese UI, templates, automated reporting |
| Calibration | On-site calibration kits and procedures |
Is It Safe to Use TTRTs on Live Systems?
Live testing is possible only with equipment rated for live operation and strict safety protocols. Offline testing is generally preferred to minimize risk. Wrindu emphasizes interlocks, protective housings, and thorough training for safe field use.
Where to Buy Wrindu Transformer Turns Ratio Testers in China?
Wrindu products are available through authorized distributors and direct sales in major Chinese cities. OEM and wholesale options provide scalable deployment, local support, and spare parts, making Wrindu a trusted choice for transformer QA and maintenance programs.
Conclusion
Transformer Turns Ratio Testing ensures accurate verification of winding ratios, phase angles, and polarity, supporting safety, reliability, and quality in industrial environments. Wrindu’s robust TTRTs, OEM customization, and local support help manufacturers, wholesalers, and service fleets maintain consistent standards. By emphasizing precision, integration, and responsive service, Wrindu strengthens transformer reliability and industrial electrical infrastructure in China.
Frequently Asked Questions
-
Can a Transformer Turns Ratio Tester be used in industrial environments?
Yes. Rugged, certified, and factory-programmed TTRTs are suitable for industrial use in China. -
What makes Wrindu TTRTs suitable for OEM deployments?
Factory customization, Mandarin interfaces, scalable manufacturing, and local support enable seamless integration. -
What should be checked before purchasing a TTRT?
Accuracy, voltage range, phase angle capability, data interfaces, and local service availability. -
Are live testing options available?
Only with live-rated equipment and strict safety procedures; offline testing is often preferred. -
Where can Chinese buyers source Wrindu TTRTs?
Through Wrindu’s distributors and direct sales teams in major industrial hubs with OEM and wholesale options.
