Underground Pipeline Detector

Model: RDCD-Ⅱ-507

Related Products

60KV VLF Hipot Tester | Multi-Function HV Insulation Tester with Tan Delta PD Test

Three Phases Capacitance and Inductance Tester

Transformer On-load Tap-changer Analyzer

New Transformer DC Resistance Tester

OVERVIEW

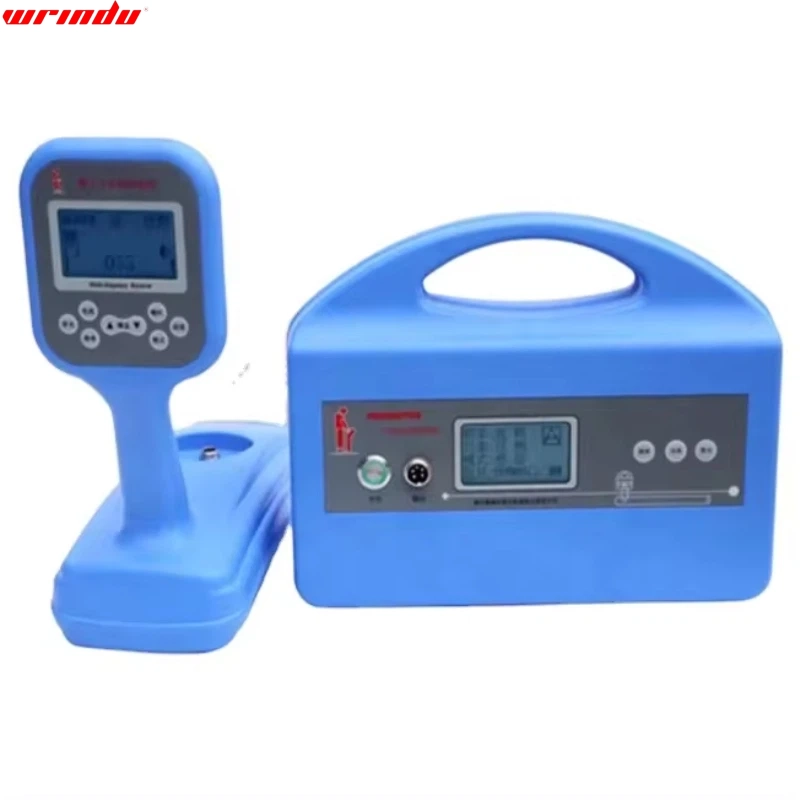

The RDCD-Ⅱ-507 Underground Pipeline Detector is engineered to harness the power of electromagnetic induction for the accurate detection of underground cables. It not only pinpoints the exact direction and depth but also identifies issues such as open circuits, short circuits, and skin faults in cables. Whether it’s tracing the route of an active or inactive cable or diagnosing problems in a directly buried line, this device is up to the task.

CHARACTERISTIC

Compass and direction indicators: Provide a clear visual representation of the pipeline’s position and lateral direction.
Tracking error notifications: Measure the current direction accurately, mitigating interference from adjacent lines.
Real-time depth and current measurements for immediate data analysis.
Entirely digital processing for steadfast stability and reliability.
Underground Pipeline Detector Conveniently compact, portable, and lightweight for ease of handling during operations.

Model	RDCD-Ⅱ/507

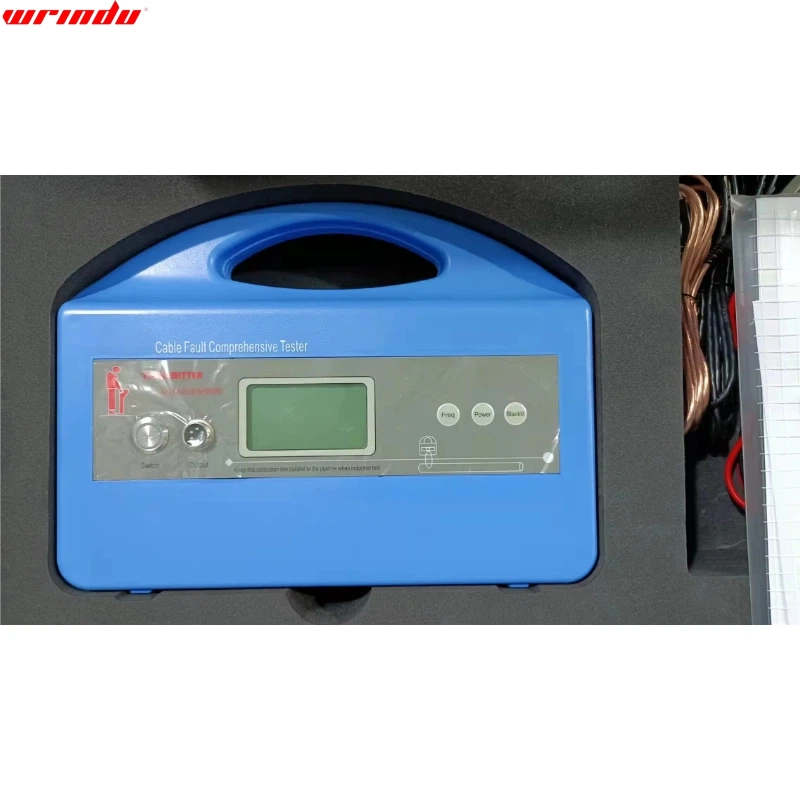

Transmitter
Operating frequency	low frequency, intermediate frequency, high frequency, radio frequency 50Hz
Antenna mode	wave trough method (vertical coil) and wave crest method (horizontal coil)
Sound indication	FM tone that varies with signal strength
Current indication	shows the effective current value of the cable under test (unit: mA)
Operating temperature	-10℃ ~+55℃
Battery	rechargeable battery
Electric quantity indication	graphic display
Signal strength	ladder diagram, digital range 0 ~ 999
Gain control	manual adjustment with a dynamic range of 100db
Detection depth	the maximum detection is not less than 10m
Maximum detection distance	the cable with good insulation can reach 15km in the direct connection method
Depth measurement	Press the depth key to display three digits, and the maximum measurable depth can reach 2.5 meters
Accuracy *	low frequency: (1 ~ 5) % ≤ 2.5m. Radiofrequency: (5 ~ 12) % ≤ 2.5m
* depends on the site environment, the shape of the non-concentric line, the number of adjacent pipelines, and the return current of the soil

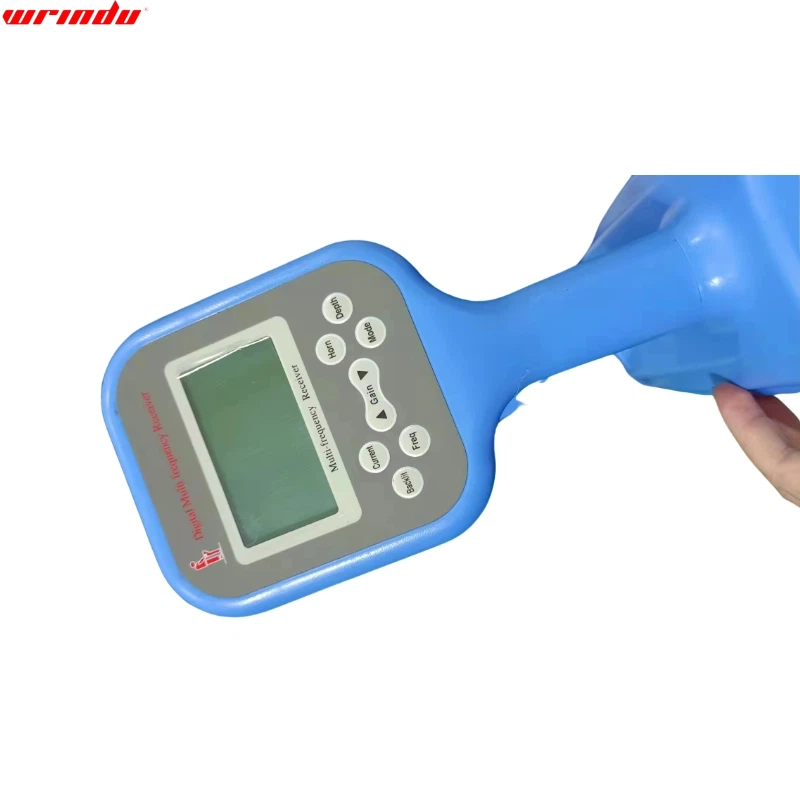

Receiver
Operating frequency	low frequency, intermediate frequency, high frequency, and radio frequency
Working modes	direct connection method, coupling method, and induction method
Load	5 Ω ~ 3,000 Ω
Impedance display	five digits
Over Current	automatic protection
Output	low gear, middle gear, and high gear
Battery	rechargeable battery
Operating temperature	-10℃ ~ 55℃
