OVERVIEW

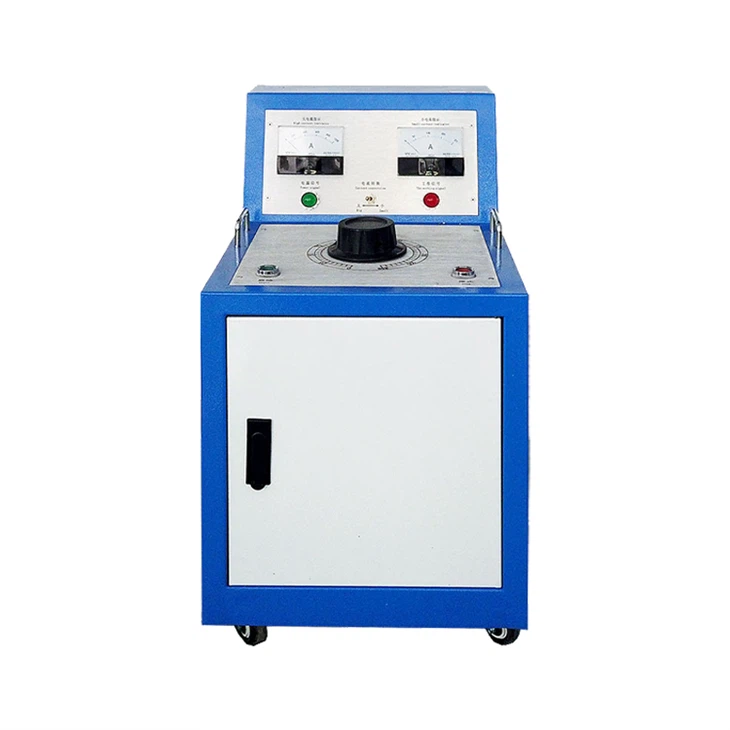

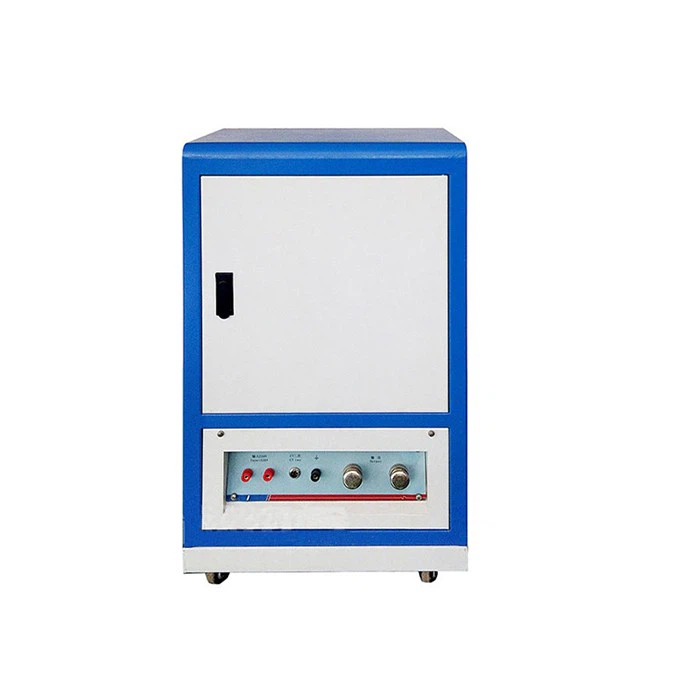

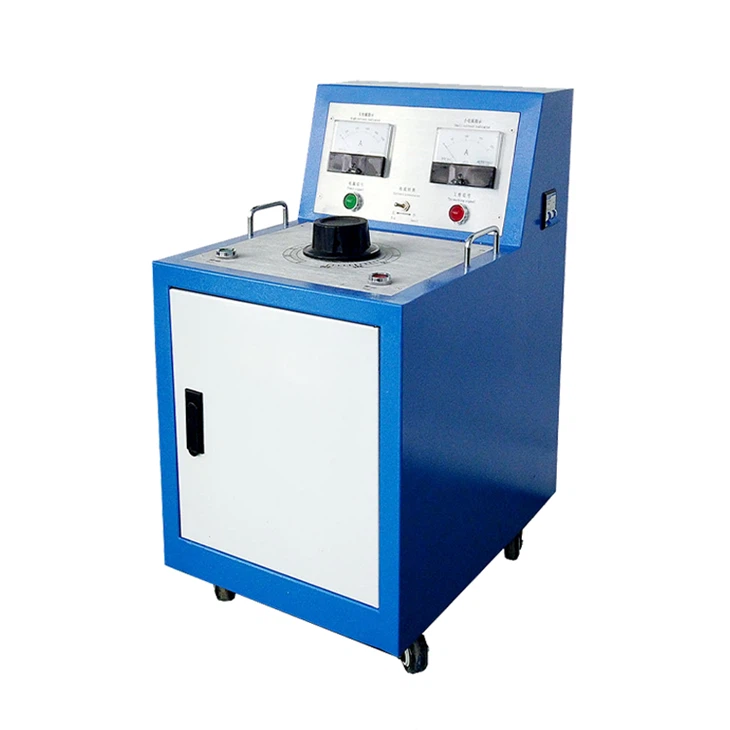

As the core test device in electrical commissioning, the RDSL-82 series primary current injection test set is designed for power plants, substations, high-precision electrical equipment manufacturing and scientific research laboratories. It adopts a short-cycle load optimization architecture with a compact structural design and lightweight engineering characteristics. Its modular maintenance architecture and user-friendly operation interface significantly improve equipment reliability and operation and maintenance efficiency and are suitable for precise commissioning needs under high-density current loads.
CHARACTERISTIC
1. Two ammeters are configured to monitor currents of different ranges.
2. Indicator lights display the status, and the button operation is simple and easy to understand.
For more information about withstand voltage testing equipment, please click More.
To request the latest quotes, please click Contact Us.
FAQ
Q: What is the primary current injection set?
A: A primary current injection set is the preferred method for testing circuit breakers, incorporating current sensors, wiring, and the breaker’s current conduction path. However, it may not consistently identify sensor wiring and polarity issues, presenting limitations.
Q: What is the difference between primary and secondary current injection test sets?
A: Primary and secondary current injection test sets differ in their testing approaches. The primary injection test set measures trip time by injecting a multiple of the fault-rated current through the breaker. Conversely, the secondary injection test set measures trip time by injecting a fault-rated current ratio into the trip unit.
Q: How do you do a primary injection test?
A: To perform a primary injection test:
1. Isolate Breaker: Disconnect from the system.
2. Connect Test Set: Use the primary injection test set.
3. Inject Current: Introduce high current.
4. Measure Trip Time: Record the time to trip.
5. Evaluate and Repeat: Analyze results and repeat if needed.
6. Prioritize Safety: Follow safety protocols.
7. Document: Record test data and outcomes.
Q: What is the purpose of the primary injection kit?
A: The primary injection kit tests and validates the performance of circuit breakers and protective devices. It injects a high current, simulating fault conditions, to assess the breaker’s response and ensure its proper functioning under real-world scenarios. This kit is essential for verifying the reliability and accuracy of protective systems in electrical networks.
APPLICATION
