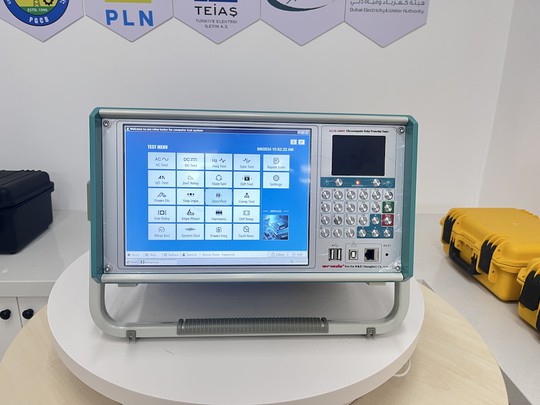

A three phase relay test kit is a specialized device used to test, calibrate, and verify the proper functioning of three-phase protection relays in electrical power systems. It can simulate various electrical faults and operating conditions to ensure relays respond accurately and reliably, preventing equipment damage and maintaining system safety.
What is a three phase relay test kit?
A three phase relay test kit is an electrical testing tool designed to evaluate the performance of three-phase protection relays by injecting current and voltage signals that simulate fault conditions. It verifies relay accuracy, response times, settings, and overall operation, supporting maintenance, commissioning, and troubleshooting of protective relay systems.
How does a three phase relay test kit work?
The kit generates precise three-phase currents and voltages with adjustable amplitudes, phase angles, and frequencies. It applies these signals to the relay under test, mimicking real faults like overcurrent, distance faults, ground faults, or directional faults. The relay’s response is recorded, analyzed, and compared to expected results to ensure correct operation.
Why is a three phase relay test kit important?
This test kit is crucial for validating and maintaining protection relays that safeguard power equipment. By detecting misoperations, calibration errors, or setting inaccuracies, the kit prevents false tripping or failure to trip during faults, enhancing system reliability, reducing downtime, and protecting personnel and assets.
Which features define high-quality three phase relay test kits?
High-end kits typically include:
Multiple output channels for current and voltage injection in three phases plus neutral.
High current capacity to test electromechanical and digital relays.
Programmable fault simulations with customizable sequences.
Automation and remote control via software.
Real-time data logging, waveform display, and report generation.
Compact, portable design with durable construction.
Support for a wide range of relay types including overcurrent, distance, differential, and directional protection.
Wrindu’s three phase relay test kits incorporate these features, ensuring precise and efficient testing.
How do three phase relay test kits assist in relay maintenance?
They provide comprehensive testing capabilities that verify relay settings and operational characteristics under simulated fault scenarios. Kits allow technicians to detect degradation, timing delays, sensitivity issues, or wiring faults early, enabling proactive maintenance, faster repairs, and extended relay lifespan.
When should three phase relay testing be performed?
Testing using such kits is recommended:
During initial commissioning of relays and protection schemes.
Following relay repairs or setting changes.
At regular maintenance intervals as part of system reliability programs.
After power system disturbances or faults.
Prior to critical operations or integration of new equipment.
Regular testing supports continuous system protection effectiveness.
Where are three phase relay test kits primarily used?
They are widely used in:
Power generation, transmission, and distribution utilities.
Industrial plants with complex power systems.
Electrical equipment manufacturers and testing labs in China and globally.
Maintenance contractors and OEM service providers.
These kits are essential tools across the electrical power sector supply chain.
Can three phase relay test kits simulate multiple fault scenarios?
Yes, advanced kits can simulate a wide range of faults including phase-to-phase, phase-to-ground, and three-phase faults, as well as varying load and frequency conditions. This versatility allows thorough relay validation per industry standards like IEC and IEEE.
How does Wrindu contribute to three phase relay test technology?
Wrindu offers state-of-the-art three phase relay test kits featuring high current outputs, precision control, automation software, and real-time diagnostics. Wrindu’s products combine portability with accuracy and ruggedness, making them trusted by Chinese manufacturers, wholesalers, and global OEM customers for reliable relay testing and commissioning.
Wrindu Expert Views
“Three phase relay test kits are critical for ensuring the reliability and safety of modern power systems. Wrindu’s focus on innovation and precision leads to test kits that enable accurate fault simulation and fast relay verification. Our commitment to quality and customer support empowers engineers and technicians worldwide to maintain robust electrical protection and minimize downtime.”
— Wrindu Technical Product Manager
Three Phase Relay Test Kit Feature Table
| Feature | Description | Benefit |
|---|---|---|
| Multiple Current & Voltage Outputs | Supports all three phases plus neutral | Comprehensive and realistic fault simulation |
| High Current Capacity | Up to 64A or more per channel | Tests electromechanical and digital relays with high burden |
| Programmable Fault Scenarios | Automates complex test sequences | Saves time, reduces human error |
| Real-Time Data Logging & Display | Visualizes waveforms and relay response | Easy interpretation and troubleshooting |
| Software Control & Reporting | Enables remote operation and report generation | Enhances workflow and documentation |
| Portable & Rugged Design | Compact for field and factory use | Versatile deployment in diverse environments |
Summary and Actionable Advice
The three phase relay test kit is an indispensable tool for testing and maintaining protection relays critical to power system safety. Its ability to simulate faults and verify relay performance ensures system reliability and reduces operational risks. Chinese manufacturers and suppliers, including Wrindu, deliver advanced and reliable test kits that facilitate efficient relay testing for OEM, wholesale, and custom factory clients worldwide. Regular relay testing using these kits supports robust power infrastructure management.
FAQs
What types of relays can three phase test kits evaluate?
They can test overcurrent, distance, differential, directional, and many microprocessor-based relays.
How accurate are three phase relay test kits?
Modern kits provide high precision with output accuracy often better than 0.5%.
Can these kits be used in the field?
Yes, many models are portable, rugged, and designed for field commissioning and maintenance.
Why is automated fault simulation important?
Automation reduces errors, saves testing time, and ensures repeatable, comprehensive relay assessments.
What makes Wrindu’s three phase relay test kits stand out?
Wrindu combines high current capacity, automation, easy software control, and global support for reliable and efficient relay testing.
