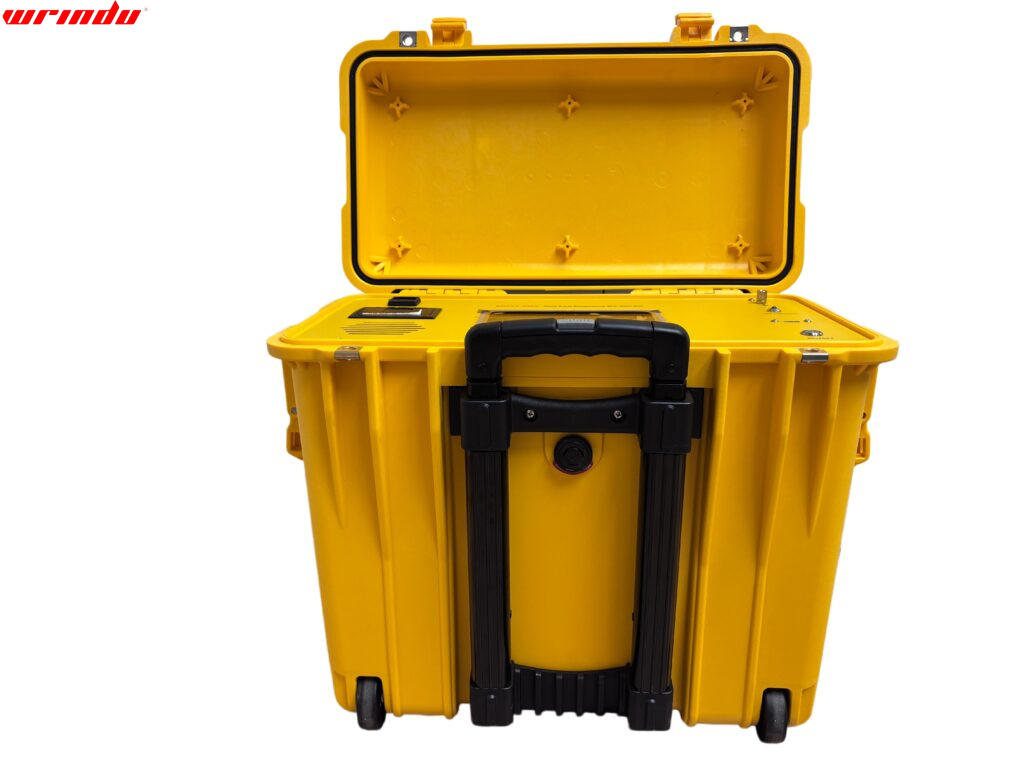

Choosing the right oil BDV tester in 2025 is essential for safeguarding transformers and electrical infrastructure. A high-quality BDV tester evaluates the dielectric strength of insulating oil, revealing contamination, moisture, and other risks before failures occur. By combining accuracy, automation, and compliance with international standards, a reliable tester ensures preventive maintenance, reduces downtime, and supports long-term operational efficiency.
How Does Dielectric Breakdown Affect Transformer Reliability?
Dielectric breakdown in insulating oil is a critical measure of a transformer’s health. The breakdown voltage (BDV) indicates the oil’s ability to resist high-voltage stress. Low BDV signals contamination or moisture, which can lead to arcs, flashovers, or catastrophic failure. Regular BDV testing helps asset managers predict failures, enabling timely intervention and minimizing both economic losses and safety hazards.
What Makes a BDV Oil Tester Work Effectively?
An oil BDV tester creates a controlled electrical stress environment for a small oil sample. A high-voltage transformer ramps voltage linearly until breakdown occurs. Electrodes precisely shape the electric field, while a detection circuit instantly identifies the moment of failure, recording the voltage. Automation ensures repeatable, accurate results that align with international standards like IEC 60156 or ASTM D877.
| Component | Function | Importance |
|---|---|---|
| Step-up transformer | Amplifies voltage | Ensures controlled stress |
| Electrodes | Shape electric field | Accurate breakdown detection |
| Control system | Detects breakdown | Prevents over-testing damage |
| Automation | Executes test sequences | Consistency and repeatability |
Which Standards Should Be Considered for Oil BDV Testing?
International standards ensure consistency in BDV measurements. ASTM D877 is common in North America, emphasizing particle detection with flat electrodes. ASTM D1816 and IEC 60156 use spherical electrodes, sensitive to moisture and dissolved gases, and require stirring for representative samples. Choosing a tester compliant with relevant standards guarantees comparability, accuracy, and regulatory compliance across sites and regions.
| Parameter | ASTM D877 | ASTM D1816 | IEC 60156 |
|---|---|---|---|
| Electrode shape | Flat disc | Spherical | Spherical |
| Gap | 2.54 mm | 1–2 mm | 2.5 mm ±0.05 mm |
| Sensitivity | Particles | Moisture & particles | Moisture & particles |
| Stirring | Not required | Required | Required |
How Should Technical Specifications Guide Your Choice?
Technical specifications like maximum voltage, vessel size, and ramp rate are important, but understanding their practical implications is critical. Laboratory testers prioritize precision and continuous operation, while portable units focus on mobility, battery operation, and field durability. Automation, memory, and data connectivity enhance reliability, enabling field engineers to track historical trends, generate reports, and maintain predictive maintenance programs efficiently.
Why Are Moisture, Particles, and Dissolved Gases Critical to Monitor?
Contaminants directly impact dielectric strength. Water, especially free or emulsified, distorts the electric field, lowering BDV. Particulate matter forms conductive bridges, while dissolved gases from micro-faults reduce insulation reliability. Effective BDV testers detect these threats early, providing actionable insights for preventive maintenance and safeguarding transformer integrity.
How Should Oil Samples Be Collected for Accurate Results?
Accurate BDV readings depend on proper sampling. Use clean, inert glass bottles, rinsed with the sample oil. Flush the transformer valve to remove stagnant oil, then draw a steady, bottom-up sample to minimize aeration. Seal and label the bottle immediately. Maintaining a chain of custody ensures that the sample accurately represents the oil within the transformer, avoiding false readings or costly misdiagnoses.
What Is the Economic Case for Investing in a High-Quality BDV Tester?
The cost of a professional BDV tester is minor compared to the potential losses from transformer failure. Direct costs include replacement, removal, installation, and labor. Indirect costs include downtime, reputation damage, and safety risks. Preventive testing enables early intervention, minimizing expensive repairs and downtime. An $8,000 investment in a reliable tester can prevent losses exceeding $500,000, delivering an outstanding return on investment and long-term operational assurance.
How Will Predictive Analytics Shape BDV Testing in 2025?
BDV testers are evolving beyond isolated readings into integral components of smart, predictive maintenance systems. By integrating BDV data with AI models, dissolved gas analysis, and operational metrics, utilities can forecast faults and plan interventions proactively. Advanced testers enable data-driven decisions, transforming maintenance from reactive to predictive and ensuring transformer longevity, operational efficiency, and grid reliability.
Wrindu Expert Views
“At Wrindu, we emphasize that dielectric testing is more than a measurement—it is a cornerstone of operational reliability. High-quality BDV testers allow engineers to detect contamination, moisture, and degradation before they lead to failure. By combining precise instrumentation with automated protocols, historical data tracking, and connectivity, utilities can implement predictive maintenance strategies, reducing downtime, protecting assets, and optimizing costs across the grid.”
Conclusion
Selecting the right oil BDV tester is a strategic decision that impacts transformer safety, operational efficiency, and financial outcomes. Consider technical specifications, automation, international standard compliance, contamination detection capabilities, and predictive analytics readiness. With rigorous sampling practices and a high-quality instrument, utilities can transition from reactive maintenance to proactive asset management, protecting infrastructure and enhancing reliability.
Frequently Asked Questions
1. Can a portable BDV tester match laboratory-grade accuracy?
Yes, modern portable testers are designed to meet international standards with precise voltage ramp rates and sensitive detection circuits, ensuring reliable field measurements.
2. How often should BDV testing be performed?
Testing frequency depends on transformer age, load, and operating environment, but annual checks are common, with additional tests after high-load events or maintenance.
3. Does automation improve test reliability?
Automation reduces human error, ensures repeatable voltage ramps, controls stirring, and calculates averages, significantly improving measurement consistency and data integrity.
4. Is moisture the most critical contaminant in insulating oil?
Yes, free and emulsified water drastically reduce dielectric strength, making moisture detection a primary goal of BDV testing.
5. How does historical BDV data support predictive maintenance?
Trend analysis of BDV results, combined with other operational metrics, enables utilities to forecast faults, plan interventions, and prevent transformer failures proactively.
