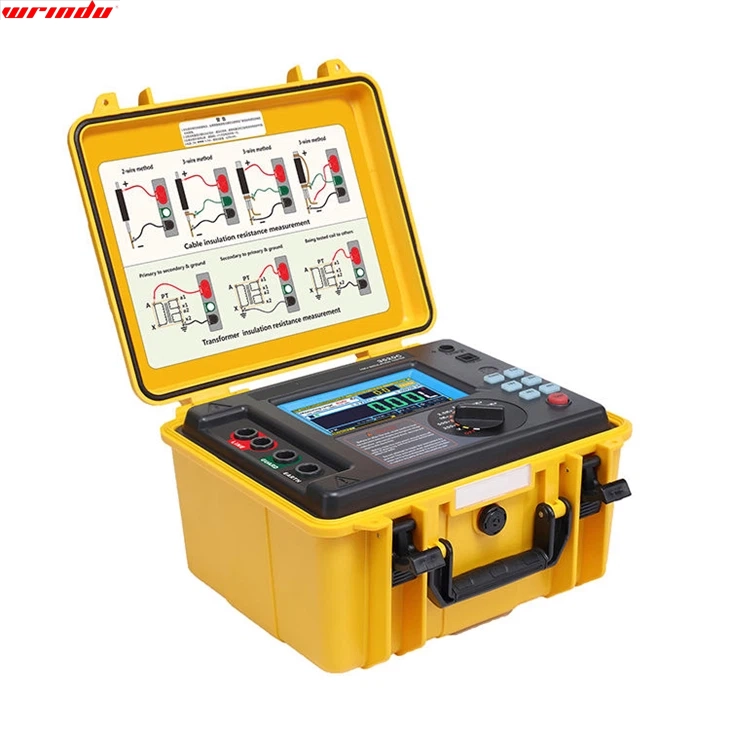

A proof test qualifies insulation: it answers whether the insulation can hold a specified voltage without breakdown, and its result is a pass or fail. A diagnostic test measures condition: it answers how healthy the insulation is, using indicators such as insulation resistance, polarization index, tan delta and partial discharge, and its result is a condition picture that can be trended.

Proof testing and diagnostic testing are complementary, not interchangeable, and choosing between them means deciding whether the question is “can this hold the voltage” or “what is the condition of this insulation”.

Proof Tests: Qualification, Not Condition

A proof test, such as a hipot or withstand test, applies a defined overvoltage and checks that the insulation does not break down. Its result is deliberately simple: the insulation held the voltage, or it failed. That simplicity is its strength in acceptance and verification decisions, where the question is whether the insulation can withstand the stress it will meet in service. A proof test pass is a qualification of the insulation at that moment under that stress; it is not a measure of how much margin remains before failure or of the general health of the insulation.

The proof test also carries a risk that the insulation itself defines: if the insulation is weakened, the proof voltage may break it down. That is the intended outcome in a qualification test of new or repaired insulation, where finding a weakness is the point, but it is a reason for caution on aged insulation whose condition is unknown. Proof testing should therefore be applied when the condition supports it, or when the specification requires the proof and the risk has been accepted.

Diagnostic Tests: Building a Condition Picture

Diagnostic tests measure properties that change as insulation ages or deteriorates. Insulation resistance and its derived ratios respond to moisture, contamination and the general insulation condition; tan delta measures dielectric loss, which rises with certain ageing mechanisms; and partial discharge measurement detects discharge activity at defect sites. Each diagnostic answers part of the condition question, and the full picture comes from combining them with the asset history and the operating conditions.

Diagnostic results are trended rather than judged against a single pass or fail. The same measurement repeated over time and compared across phases reveals change, and change is what identifies developing problems before they become failures. The diagnostic view is therefore the appropriate one for maintenance planning and for deciding whether an asset is ready for a proof test, because it answers the question that a proof test cannot: how healthy is this insulation, and is it safe to apply the proof voltage?

The Voltage and Risk Difference

The voltage difference between the two approaches is the source of their different risk. Diagnostic tests generally apply voltages at or below the service stress and are designed not to damage healthy insulation, which is why they can be repeated on a schedule. Proof tests apply voltages above the service stress to prove the withstand margin, and the risk of damage rises with the condition of the insulation and the level of the proof voltage. A diagnostic test that finds deterioration does not create the deterioration; a proof test on deteriorated insulation can convert a repairable condition into a failure.

The risk comparison leads to a practical rule: diagnose before you prove. When the condition of the insulation is unknown, diagnostic testing comes first, and its results decide whether a proof test is appropriate. When the insulation is new or recently verified, or when a specification requires the proof, the proof test follows with the risk understood. Reversing the order, proving first on unknown insulation, turns the proof test into a gamble.

Where Each Fits in Asset Life

Proof tests fit at the decision points where qualification is required: factory acceptance, installation acceptance, verification after repair or modification, and the periodic proof defined by some maintenance specifications. Diagnostics fit throughout the operating life: at commissioning to establish the baseline, during routine maintenance to build the trend, and after events to check for change. The two overlap in maintenance programmes, where a specification may require a diagnostic set at each interval and a proof test at a longer interval, with the diagnostic results reviewed before the proof is applied.

Reading the specification in this structure, rather than treating every test as interchangeable, protects the asset and makes the programme defensible. A proof test performed when the diagnostic trend indicates deterioration is a procedure error, even if the test passes, because the risk was not justified by the evidence.

Reading and Acting on Each Type of Result

A proof test result is read against the specification: the insulation held the defined voltage for the defined duration, or it failed. A failure triggers investigation, because the proof result identifies that the insulation could not hold the stress but not why; the investigation combines the failure evidence with diagnostic measurements and visual examination. A pass closes the qualification question but does not certify health, so the condition picture still comes from the diagnostic layer.

A diagnostic result is read in context: compared with the asset’s own baseline, across phases and over time, with temperature and moisture accounted for. A change in the trend triggers a response appropriate to its size: closer monitoring, additional diagnostics, or removal from service for investigation. The response to a diagnostic change is a decision for the engineer who owns the asset, made with the trend and the operating context in hand.

Choosing Proof, Diagnostic or Both

Use the table to frame the decision, then read the governing document for the voltage, duration and diagnostic set. Many programmes need both: diagnostics to build the condition picture and proof tests at the points where qualification is required.

A worked example shows how the two layers work in a transformer maintenance programme. A power transformer reaches its scheduled maintenance interval, and the specification calls for both a diagnostic set and a periodic proof. The diagnostic results show insulation resistance and PI values that are stable against the commissioning baseline, and tan delta readings that have not changed materially; on that evidence, the responsible engineer authorises the proof test, which the unit passes, and the record closes with both layers documented. A sister unit at the same interval shows a PI that has fallen below its own trend and a rising tan delta; the proof test is not applied to that unit, and the investigation identifies moisture that is addressed before the unit is returned to service. The two units received different programmes from the same specification, and both decisions are defensible because each is tied to its evidence. This is the value of keeping proof and diagnostic logic separate: the specification provides the framework, and the evidence decides the sequence.

Frequently Asked Questions

What does a proof test pass mean?

A proof test pass means the insulation held the defined voltage for the defined duration without breakdown. It qualifies the insulation at that moment under that stress; it does not measure the remaining margin or certify the general health of the insulation.

Why are diagnostics recommended before a proof test on aged insulation?

Diagnostic tests measure condition without damaging healthy insulation, and their results show whether the insulation can safely take the proof voltage. Applying a proof voltage to aged insulation whose condition is unknown risks converting a repairable condition into a failure, so diagnosis comes first.

What is the difference between controlled overvoltage and proof testing?

Both apply voltages above the service stress, but they differ in purpose and interpretation. A proof test is a qualification pass or fail, while a controlled overvoltage test may be used as a diagnostic method that observes the insulation’s behaviour at defined voltage steps. The distinction and the levels come from the governing document for the asset.
