OVERVIEW

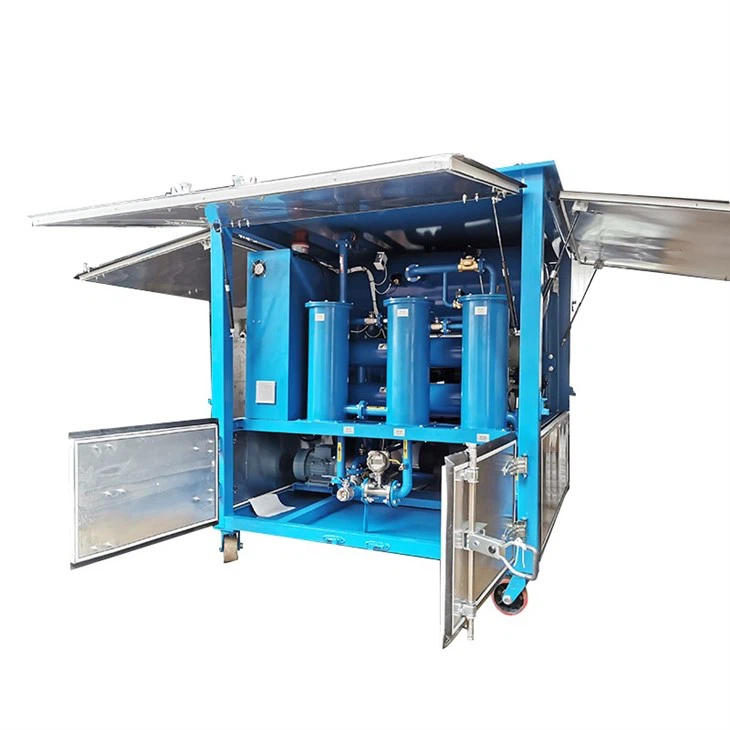

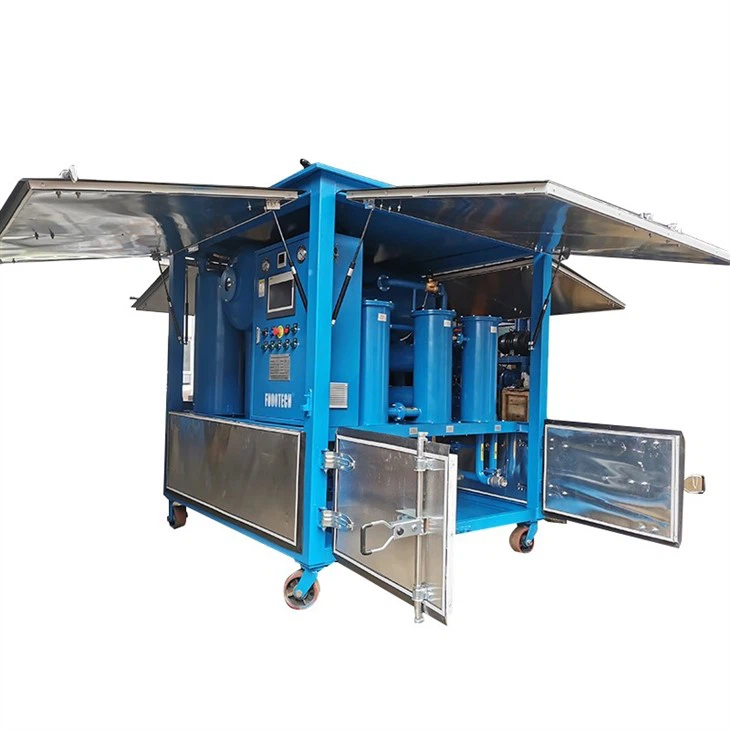

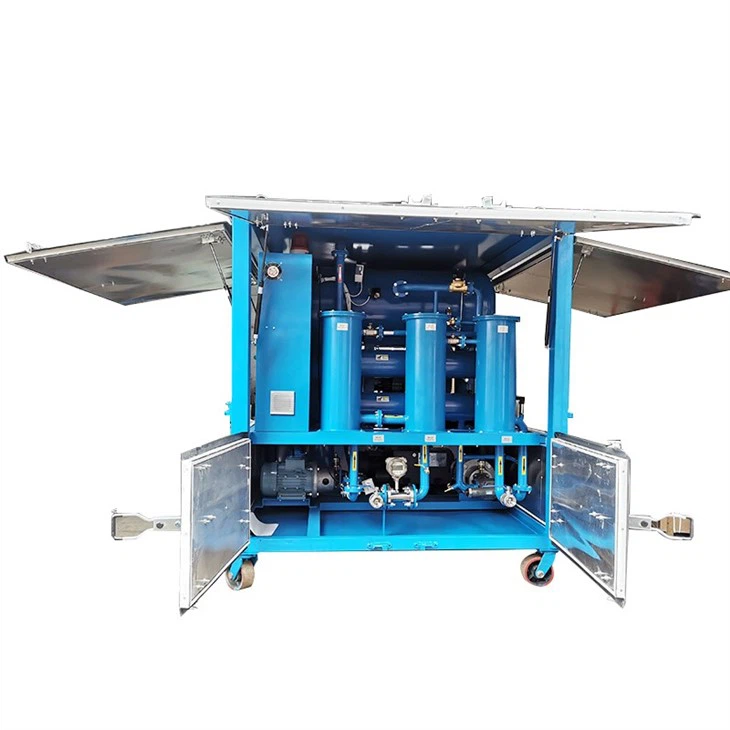

Tailored for comprehensive purification, dehydration, degassing, and particle elimination in transformer-insulating oils, the ZYD-F Series Two Stage Vacuum Transformer Oil Purification System Mobile Fully Enclosed excels beyond the basics. Beyond routine functions, it combats acidity, sludge, and soluble decay products, enhancing the oil’s dielectric toughness to rival new transformer oil.
With a high working vacuum, rapid purification, and low maintenance, this purifier has gained global recognition. Offering a cost-effective, eco-friendly solution, the ZYD-F Series Two Stage Vacuum Transformer Oil Purification System Mobile Fully Enclosed extends transformer oil life to over 20 years. Ideal for new oil treatment and reconditioning used oil in various equipment up to 750KV, it streamlines the oil treatment process, ensuring optimal performance at the rated capacity.
CHARACTERISTIC

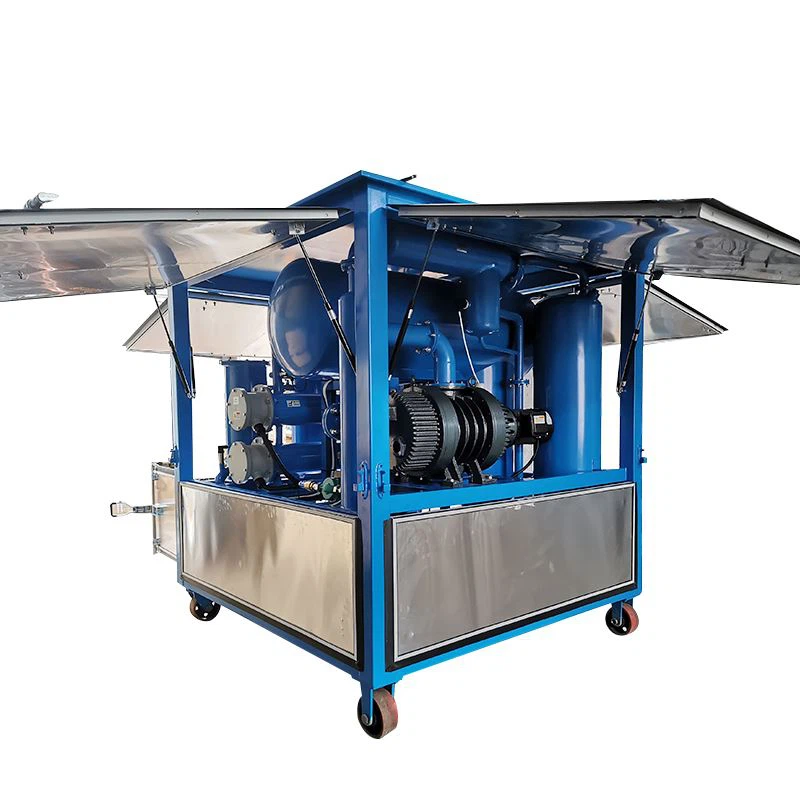

- Advanced Vacuum Pumping System:
-Benefit from a double-stage high vacuum system, ensuring powerful vacuum evacuating with an ultimate value of ≤10Pa.
- Innovative Separation and Drying Technology:
-Experience the effectiveness of special “T” shape double vacuum separation and thin-film drying degassing technologies, offering double evaporation area and extended degassing time.
- Patented Degassing Tank with Swiss Components:
-Enjoy the reliability of our patented degassing tank, featuring an anti-foam structure and a dual electronic foam monitoring system from Switzerland, preventing oil from entering the vacuum pump.
- Robust Control System for Long-Term Stability:
-Rely on our optimized control system with interlock protection, overpressure alarm, phase sequence protection, and various automatic protection systems for safe and stable unattended operation.
- Efficient Oil Atomization:
-Transformer Oil Purification Filtration Systems witness oil atomized particles smaller than 50μm, significantly increasing efficiency for the escape of water and gas molecules from oil molecules.
- High-Density Electrical Heaters with Indirect Heating:
-Transformer Oil Purification Filtration Systems Ensure oil longevity with high-density electrical heaters featuring surface efficiency below 1.5 W/cm2, preventing local overheating and oil cracking.
- Heater System Protection:
-Implement liquid level and temperature protectors on the heater system to prevent instantaneous high temperatures and blank heating without oil.
- Smart Vacuum Pump Cooling:
-Preposition the vacuum pump cooler to reduce water or vapor entry, minimizing the need to change the vacuum pump oil and extending the pump’s lifetime.
- Precision Filtration:
-Employ high-precision filter elements, rated up to 1 micron, preventing particles from re-entering the transformer.
- Automatic Oil Discharge Pressure Protector:
-Monitor oil filter pressure consistently with an automatic protector, ensuring continuous protection for the machine and operators.
- High-Pressure Screw Type Oil Pump:
-Benefit from a stable, low-noise, and long-life oil delivery system with the high-pressure screw-type oil pump.
- Smart Oil Level Control:
-Utilize the automatic float ball valve and electronic oil level control system for seamless automatic foam elimination and unattended operation.
- Versatile Application:
-Apply this machine for both vacuum oiling and drying power transmission equipment.

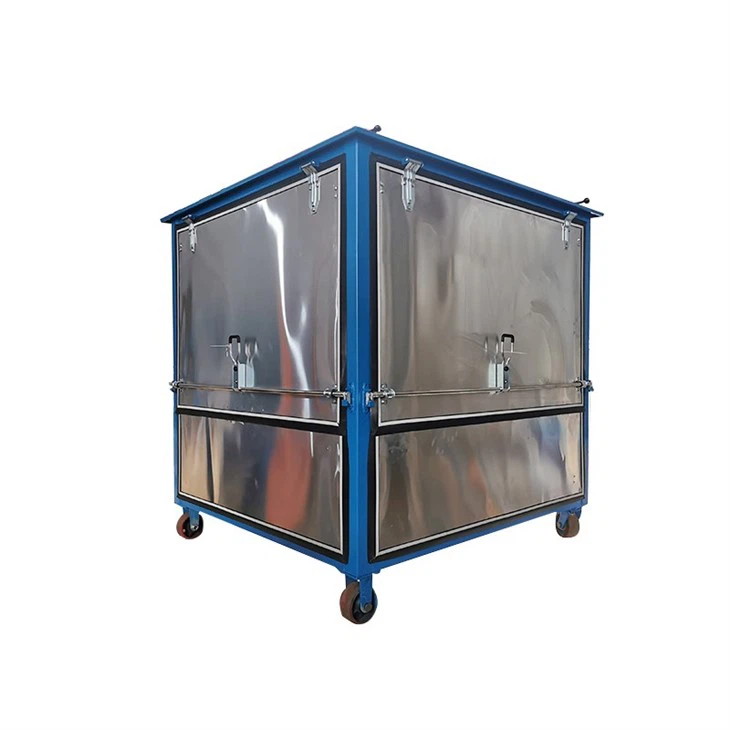

- Rugged Outdoor Design:
-Designed as a fully enclosed type for weatherproof, sand-proof, and wind-proof operation, making it ideal for outdoor usage.
