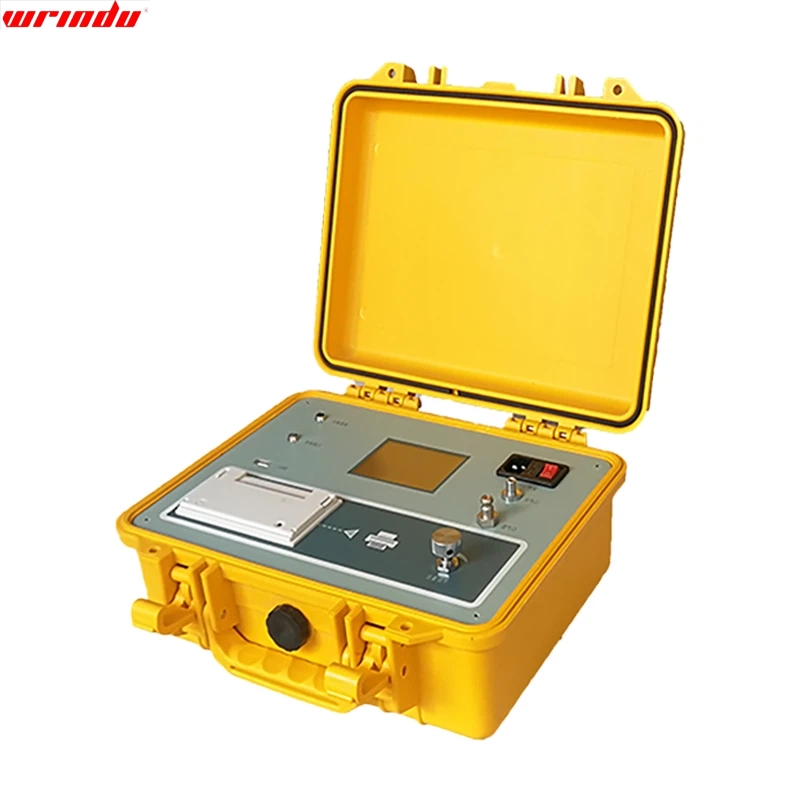

SF6 Precision Dew Point Tester

This SF6 dew-point tester features a top-tier humidity sensor for precise, stable measurement in harsh industrial settings, with polymer film capacitance technology and resistance to dust and chemicals.
Model: RDLD-702

Related Products

OVERVIEW

The RDLD-702 SF6 precision dew-point tester is a robust instrument designed for the most challenging industrial conditions. It integrates a superior-grade imported humidity sensor known for its dependable performance and accuracy. This sensor operates on the polymer film capacitance principle, ensuring precise and trustworthy measurements across its entire range. The SF6 precision dew-point tester also boasts excellent long-term stability and repeatability, remaining unaffected by dust particles and resilient to most chemical substances. Its intelligent electronic components further enhance its suitability for a variety of demanding environments.



CHARACTERISTIC



1. Intelligent automatic calibration for effortless precision.

2. Ample storage capacity for extensive data logging.

3. Battery status alerts to ensure uninterrupted use.

4. Intuitive touch-key interface for seamless interaction.

5. Consistent repeatability and rapid response for efficient testing.

6. Crisp 3.5-inch TFT color display for clear visibility.

7. On-the-spot printing capabilities for immediate data verification.

8. Enhanced resistance to pollution and interference for reliable results.

9. Unmatched sensitivity and stability for critical measurements.

10. Compact and elegantly designed for ultimate portability.

11. Engaging curve display for a comprehensive visual analysis.

12. Smart conversion of micro water values to the widely-accepted 20°C standard.

ModelRDLD-702
Dew Point Range―80℃ ~ +20℃,accuracy±1℃
Micro Water Range0.05 ~ 23100 μL/L
Response time(+20℃)-80℃→20℃ 5s(63%),45s(90%)

20℃→-80℃ 10s(63%),240s(90%)

Communication modeUSB, Equipped with previous equipment data management software
Pressure measurement range0 ~ 1.0 MPa
Flow measurement range0 ~ 1 L/min
Ambient temperature measurement range-30 ~ 100 ℃
Ambient humidity

measurement range

5 ~ 95 %RH
Operating ambient temperature-10 ~ +60℃
Operating ambient humidity0 ~ 90%RH
Working pressure0 ~ 1MPa
Flowing range0 ~ 1L/mins
Supply powerDC/AC
Dimension300*200*100mm
weight2.5Kg
