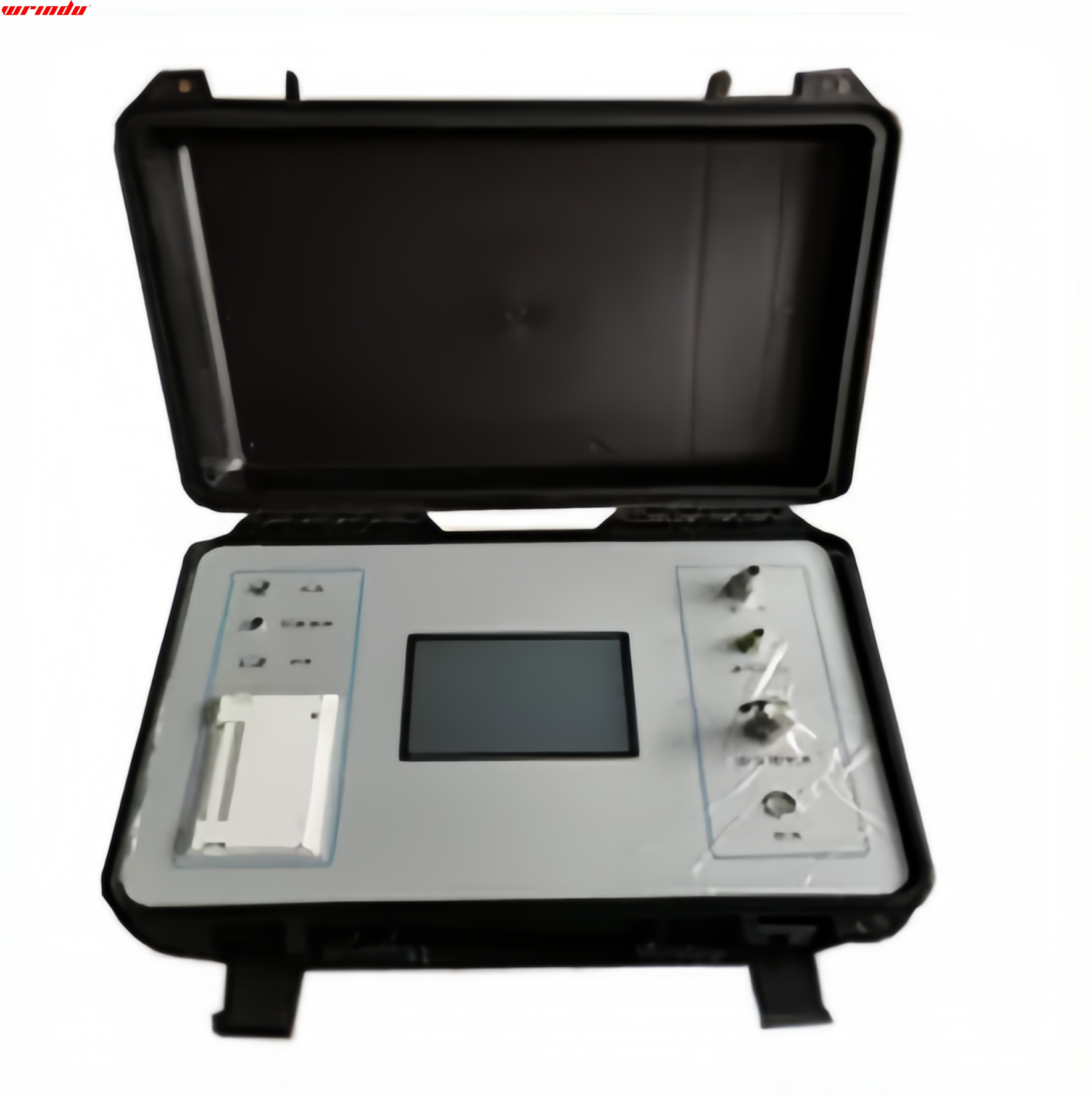

SF6 Decomposition Product Tester

The SF6 gas decomposition product tester ensures precise measurements with consistent gas flow through an electrochemical sensor. Incorporating top-notch sensors guarantees accurate and reproducible results.

Models: RDFJ-708A，RDFJ-708B

SF6 Decomposition Product Tester

OVERVIEW

The SF6 gas decomposition product tester streamlines the process of on-site detection for SF6 decomposition products. Operating seamlessly, it links to a gas chamber housing SF6 gas equipment under pressure. Here, the SF6 gas flows through the electrochemical sensor at a consistent rate, facilitating precise measurements. With its incorporation of top-notch sensors renowned for their reliability and extended lifespan, this device guarantees accurate and reproducible results, ensuring a smooth and efficient testing process from start to finish.

CHARACTERISTIC

Durable detection components for extended lifespan.
Enables direct measurement sans coloor sensor.
Ensures high accuracy and excellent repeatability.
Equipped with built-in pressure regulator and electronic mass flow meter.
The SF6 gas decomposition product tester features a large color LCD display for easy reading.
Powered by a lithium battery with AC/DC dual functionality.
Includes a convenient built-in cleaning function.

Model	RDFJ-708A	RDFJ-708B
Name	Technical parameters	Technical parameters
Measuring range	SO2：0 ～ 100μL/L H2S：0 ～ 100μL/L CO: 0 ～ 1000μL/L	SO2：0 ～ 100μL/L H2S：0 ～ 100μL/L CO: 0 ～ 1000μL/L HF: 0 ～ 10μL/L
Measuring accuracy	SO2： When the measured value ≤10μL/L, the error±0.2μL/L When the measured value≥10μL/L, the error≤±3% H2S： When the measured value≤10μL/L, the error±0.2μL/L When the measured value≥10μL/L, the error≤±3% CO: When the measured value≤50μL/L, the error±0.5μL/L When the measured value≥50μL/L, the error≤±4%	SO2： When the measured value ≤10μL/L, the error±0.2μL/L When the measured value≥10μL/L, the error≤±3% H2S： When the measured value≤10μL/L, the error±0.2μL/L When the measured value≥10μL/L, the error≤±3% CO: When the measured value≤50μL/L, the error±0.5μL/L When the measured value≥50μL/L, the error≤±4% HF: The error of measured value≤±0.1μL /L
Repeatability	SO2： When the measured value≤10μL/L,the repeatablity≤±0.1 When the measured value≥10μL/L,the repeatablity≤±2% H2S： When the measured value≤10μL/L,the repeatablity≤±0.1 When the measured value≥10μL/L,the repeatablity≤±2% CO: When the measured value≤50μL/L,the repeatablity±0.3 When the measured value≥50μL/L,the repeatablity≤±3%	SO2： When the measured value≤10μL/L,the repeatablity≤±0.1 When the measured value≥10μL/L,the repeatablity≤±2% H2S： When the measured value≤10μL/L,the repeatablity≤±0.1 When the measured value≥10μL/L,the repeatablity≤±2% CO: When the measured value≤50μL/L,the repeatablity±0.3 When the measured value≥50μL/L,the repeatablity≤±3% HF: The repeatability of measured value≤±0.1
Resolution	0.1μL/L	0.1μL/L
Sampling flow	0.2L/min	0.2L/min
Measuring time	≤180S	≤180S
Working environment	Temperature-10℃ ～ +50℃,Humidity0 ～ 90%RH	Temperature-10℃ ～ +50℃,Humidity0 ～ 90%RH
Supply power	Lithium battery power supply, AC and DC dual-use, automatic switching, overcharge and over-discharge protection function	Lithium battery power supply, AC and DC dual-use, automatic switching, overcharge and over-discharge protection function
Dimension	330(mm)×220(mm)×150(mm);	330(mm)×220(mm)×150(mm);
weight	4.6KG	4.8KG
