OVERVIEW

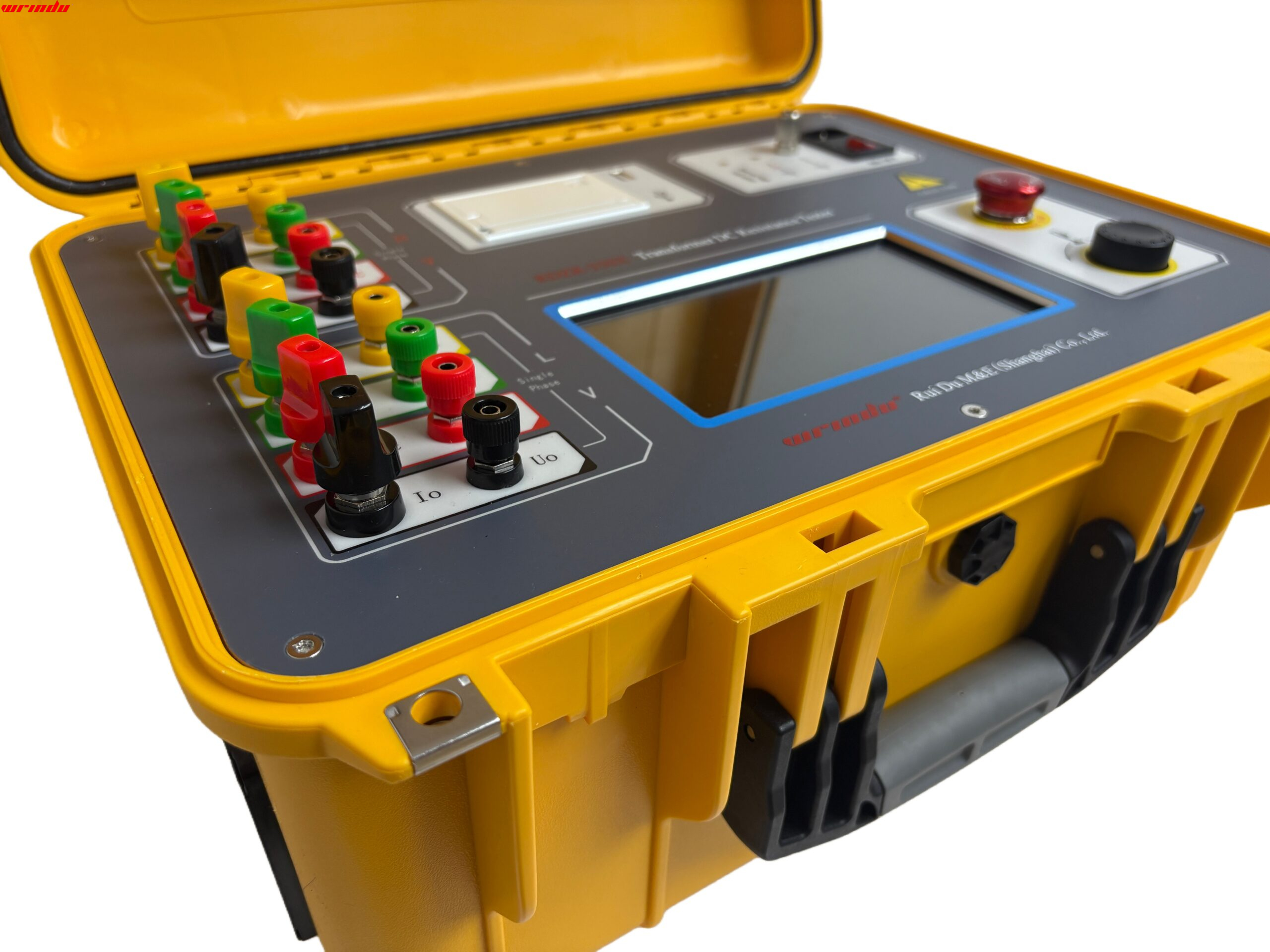

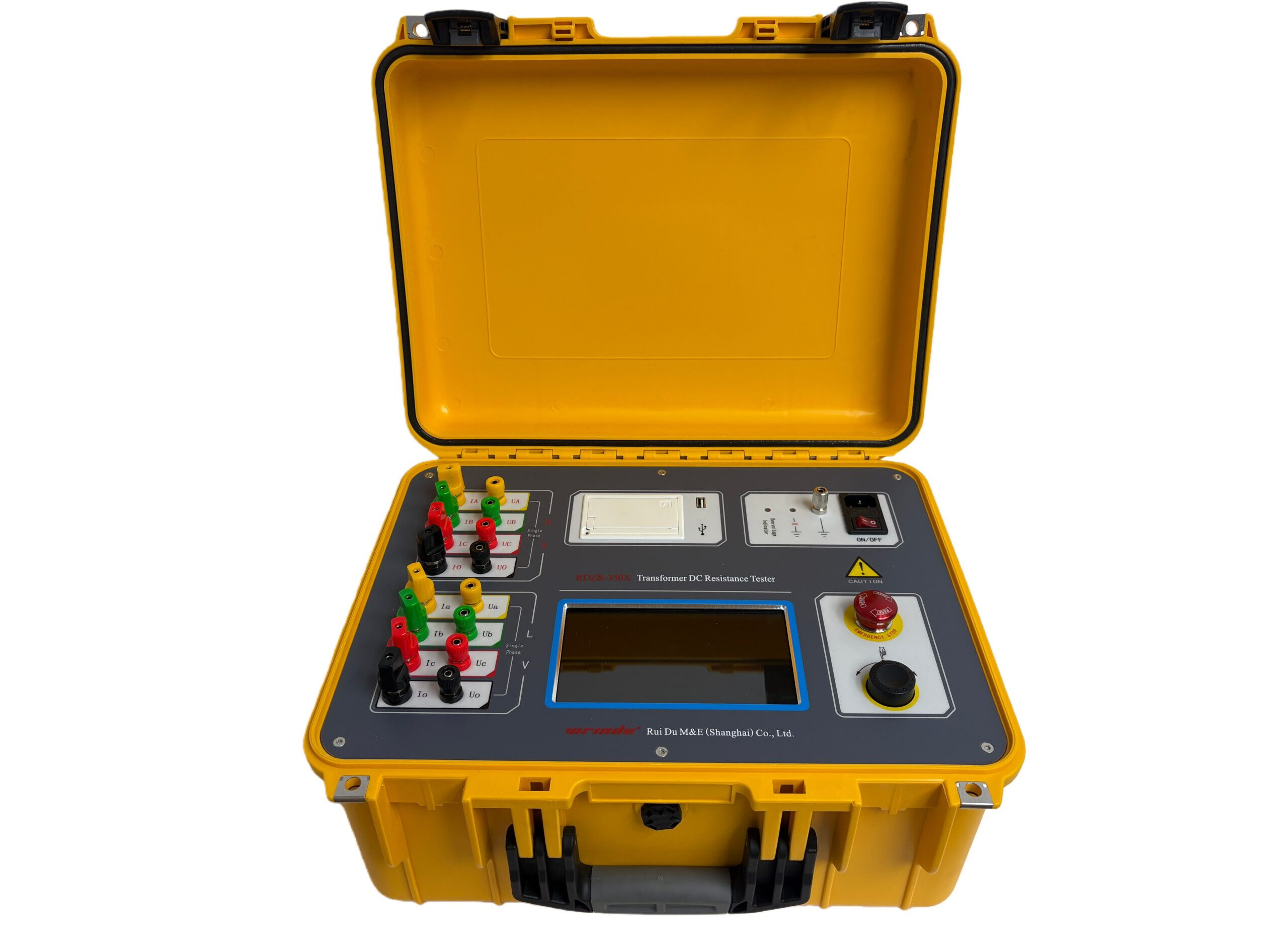

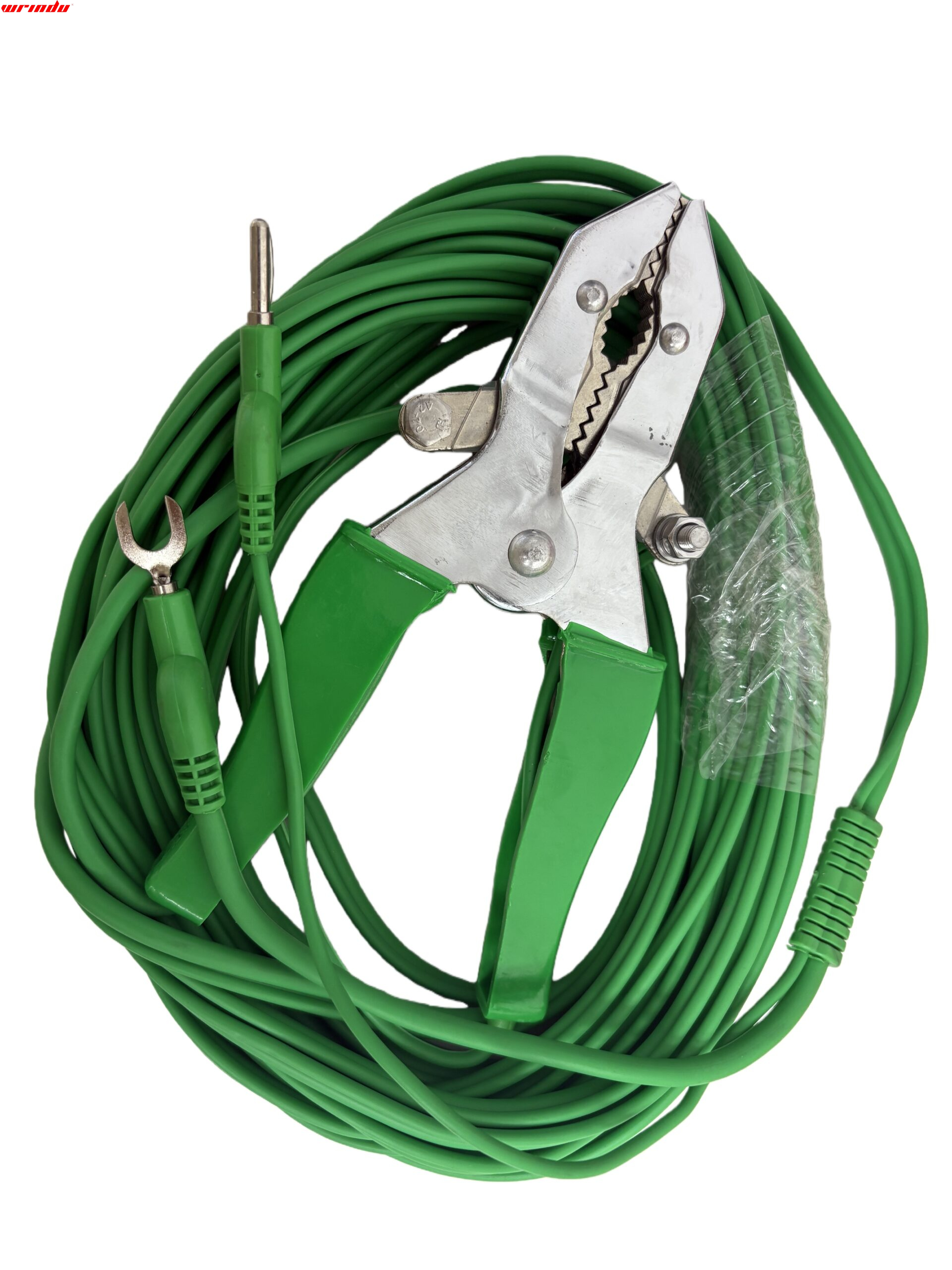

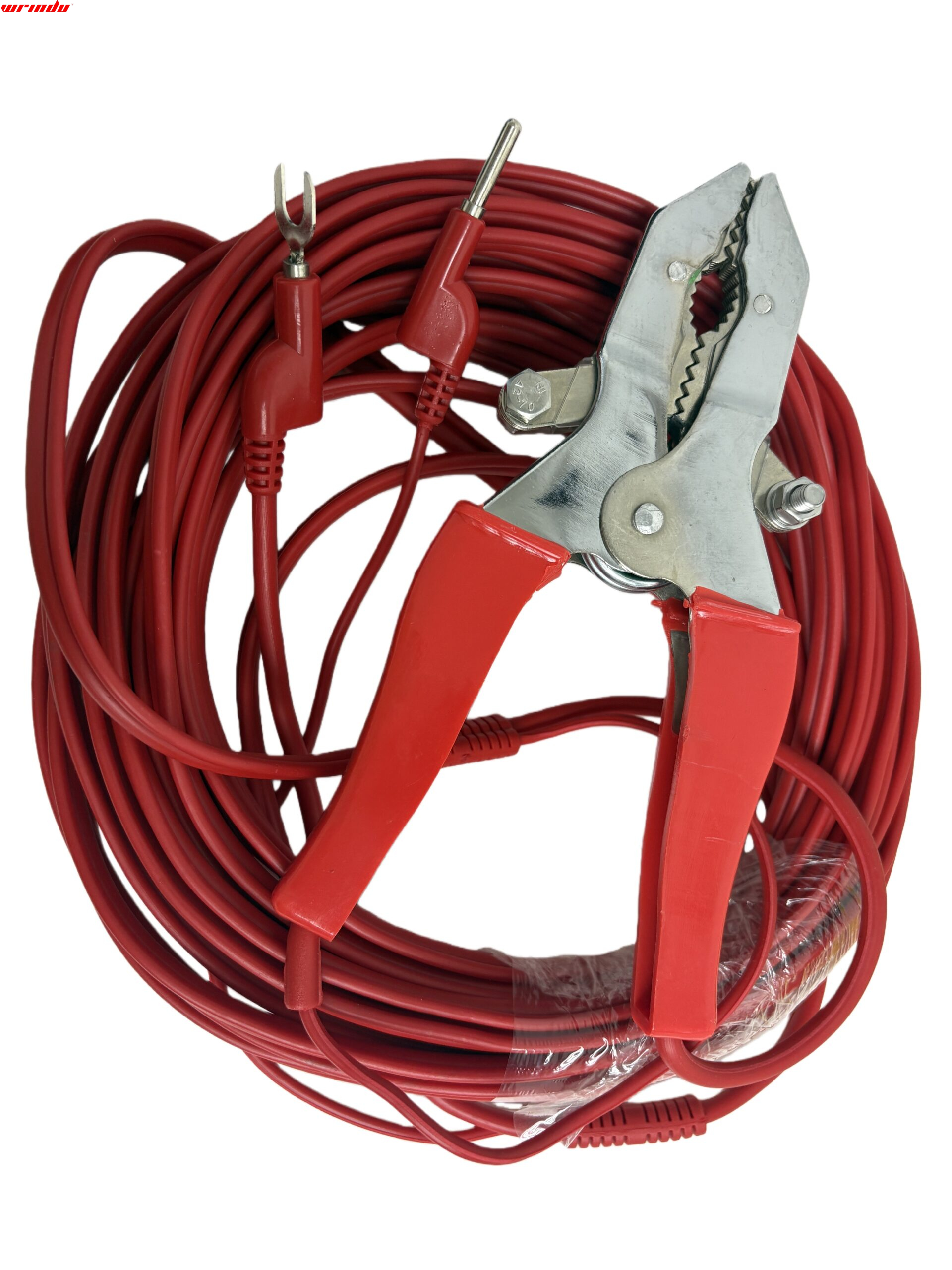

The RDZR-350X Transformer DC Resistance Tester is designed for precise DC resistance measurement of large power transformers. It supports three-phase testing and integrates magnetic-assisted measurement and automatic demagnetization. Equipped with a high-resolution color touchscreen and rotary control, it ensures fast, accurate, and user-friendly operation. All tests can be completed in a single connection, making it well suited for transformer manufacturing, installation, commissioning, handover, and preventive maintenance.
PRODUCT FEATURES
1. The instrument supports three-phase measurement for Yn, Y, and △ windings and can automatically calculate the three-phase unbalance rate.
2. Powerful testing capability: with a maximum output current of 50A and a measurement range of 0–25 kΩ, it meets most transformer testing requirements and integrates magnetic-assisted measurement and demagnetization functions to suit various on-site conditions.
3. Data stability assistance: during testing, the instrument automatically calculates the resistance change rate over 5 s, 15 s, and 30 s, helping users judge data stability and avoid reading errors.
4. Comprehensive safety protection: includes 380V misconnection protection, back EMF protection, open-circuit protection, and power-off protection, along with an alarm for ungrounded grounding wires to enhance operational safety.
5. Convenient data storage and output: equipped with a thermal printer, it can store up to 200 sets of data internally and supports large-capacity USB storage for easy data saving and review.
6. User-friendly interface: features an industrial-grade 7-inch true-color display with a clean and intuitive layout, combined with full touch and rotary knob operation for smooth and comfortable use.
TECHNICAL PARAMETERS
| Item | Description |
| Test current output | Single-phase: 50A, 20A, 10A, 5A, 1A, 0.2A, 10mA, <1mA
Three-phase: 25A+25A, 10A+10A, 5A+5A, 1A+1A, 0.2A+0.2A |
| Resistance measurement range | Single-phase:
75μΩ ~ 0.4Ω @50A 0.5mΩ ~ 1Ω @20A 1.0mΩ ~ 2Ω @10A 10mΩ ~ 4Ω @5A 0.1Ω ~ 20Ω @1A 1.0Ω ~ 80Ω @0.2A 50Ω ~ 2kΩ @10mA 500Ω ~ 25kΩ @1mA Three-phase: 0.1mΩ ~ 0.25Ω @25A+25A 0.5mΩ ~ 0.6Ω @10A+10A 10mΩ ~ 1.5Ω @5A+5A 0.1Ω ~ 7.0Ω @1A+1A 1.0Ω ~ 30Ω @0.2A+0.2A |
| Accuracy | ±(0.2%rdg+2dgt) |
| Magnetic assisted | When the transformer adopts YN/y or YN/△ wiring, the low voltage side can use the magnetic assisted method for direct resistance measurement. |
| Demagnetization | Verify demagnetization. After demagnetization, the residual magnetization value of the transformer can be displayed |
| Display | 7.0-inch touch screen, resolution 1024×600 |
| Storage | Local storage of 200 pieces of data, supporting FAT or FAT32 format USB extended storage |
| Printing: | Equipped with a thermal printer, supporting on-site printing of test results |
| Protection functions: | 380V misconnection protection, back electromotive force protection, wire breakage protection, power-off protection, and alarm function for ungrounded grounding wire |
| Power supply | AC220V±10%, 50/60Hz |
| Operating conditions | Temperature -10 ~ 50℃; Relative humidity<90%, no condensation. |
