OVERVIEW

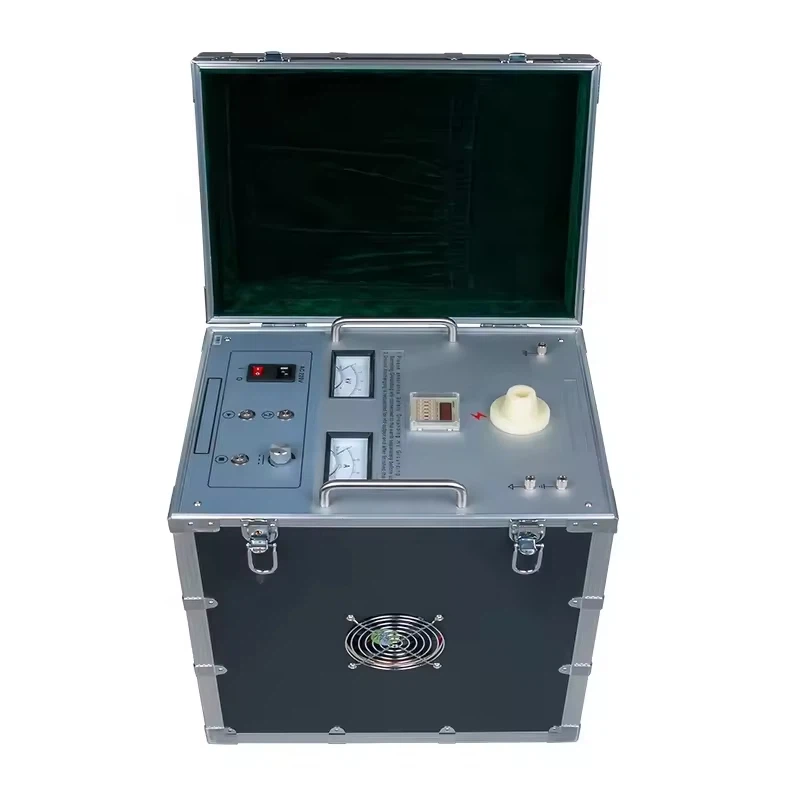

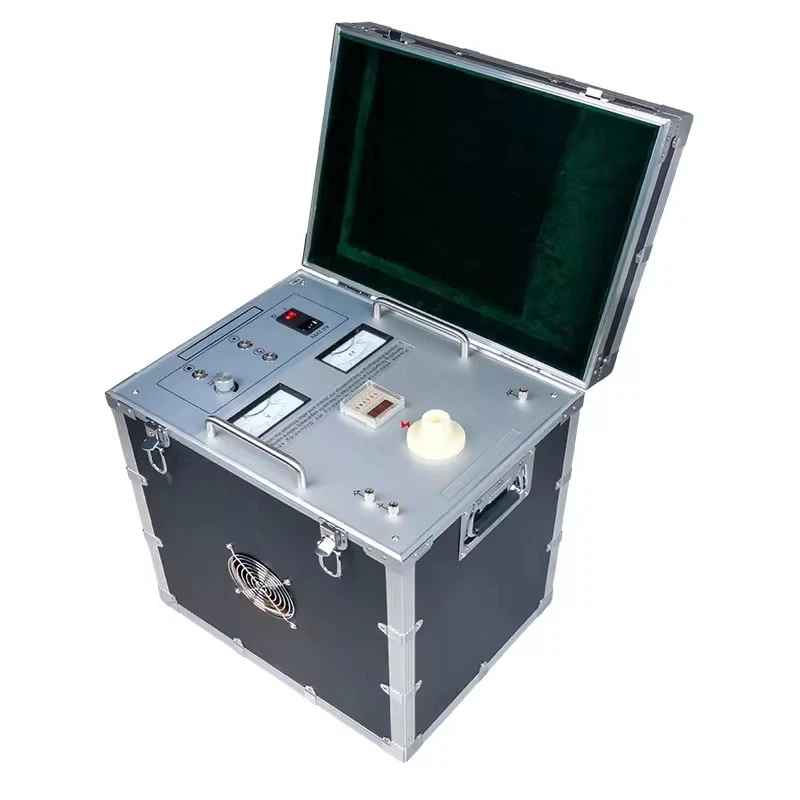

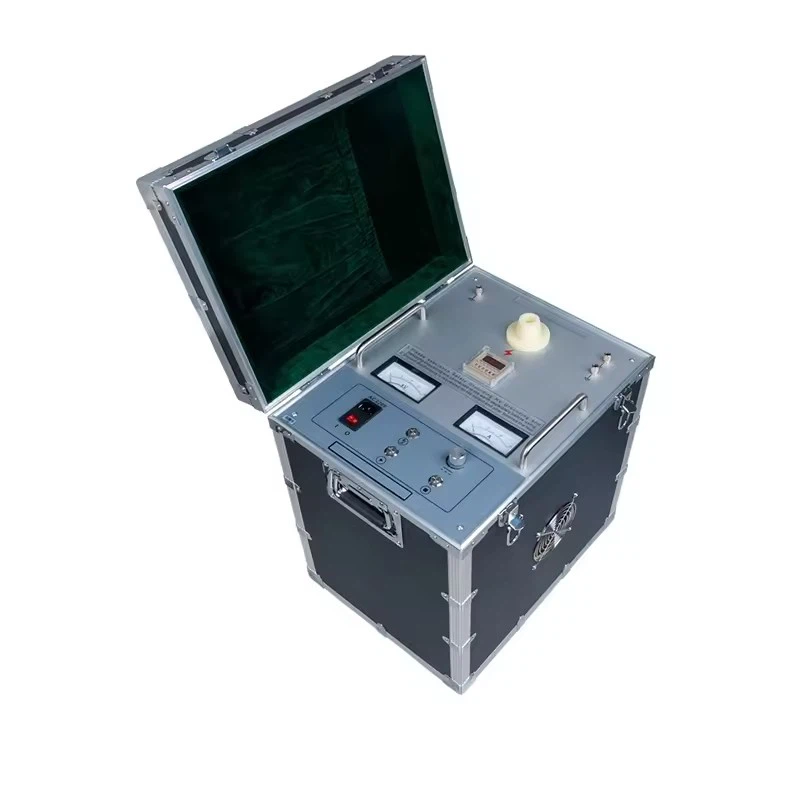

The RDCD-II/5354Z Portable Cable Test HV Signal Generator is crafted to deliver the essential high-voltage signals required for accurate fault detection in power cables. This advanced device integrates a DC high-voltage source, an energy storage capacitor, and a discharge ball gap into a single, space-saving unit. Employing precision high-voltage electronic components and state-of-the-art high-frequency high-voltage technology achieves a straightforward and highly portable design. In keeping with industry traditions, the generator is designed with an intuitive interface, making it user-friendly and in line with the conventional use of transformers and operation boxes for generating DC high voltage.
CHARACTERISTIC
- This Portable Cable Test HV Signal Generator comes with a suite of automatic safety features to defend against overcurrent, overvoltage, and thermal issues;
- It ensures a smooth and adjustable high-voltage pulse output for reliable testing outcomes;
- A special short-circuit-to-ground feature means the high-voltage system keeps running smoothly even in a direct short;

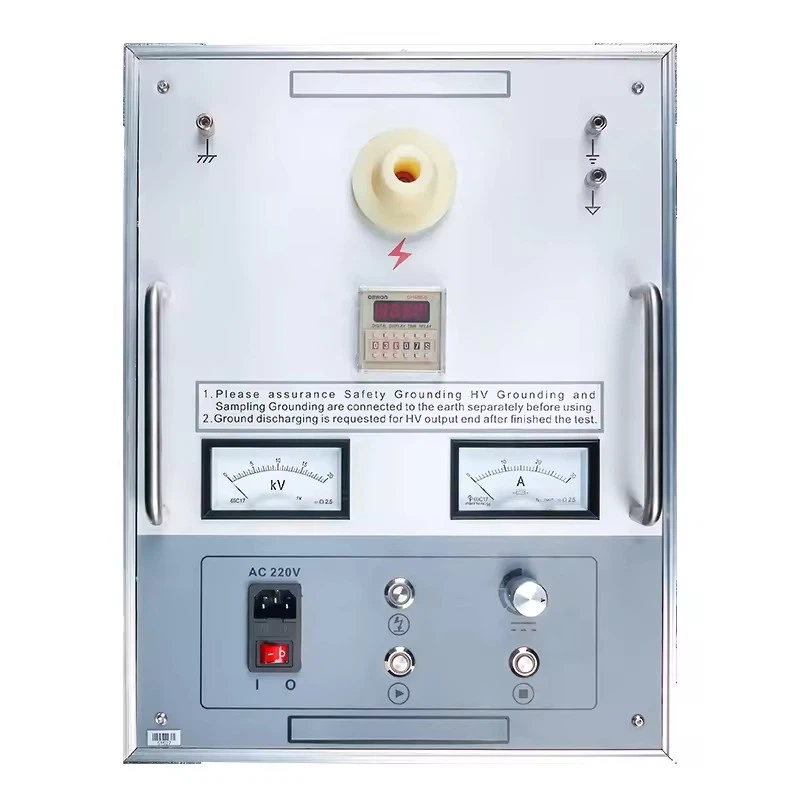

- The clear and easy-to-read dual 1.5-scale meters for current and voltage give you a straightforward picture of the discharge process;
- It includes a zero-start protection system and a potentiometer that can be dialed back to zero for safe adjustments;
- The voltmeter is cleverly designed to show the capacitor’s voltage in real-time, even when the machine is at a standstill.
