OVERVIEW

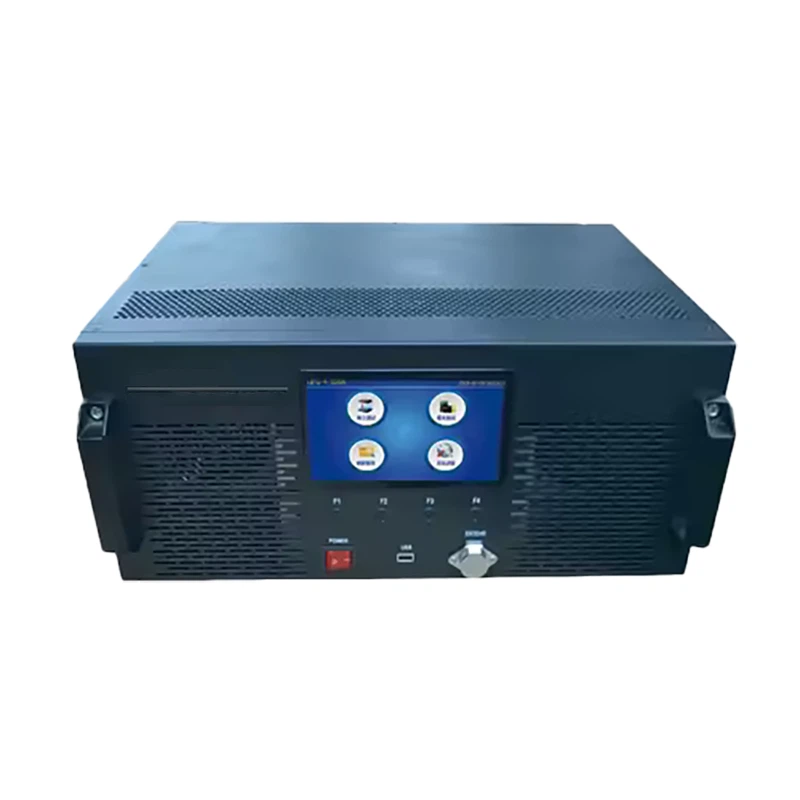

- The RDLI-4-100A lithium ion battery charger tester is a multifunctional unit designed to handle discharge, charging, and activation processes all within a single device. It boasts an extended range of currents, enabling it to address a diverse array of testing and maintenance requirements. This integrated lithium ion battery charger tester goes beyond basic functionality by emulating numerous real-world operating scenarios that battery packs might encounter. By doing so, it offers a more thorough assessment of battery performance, ensuring that the testing process is as realistic and informative as possible.
CHARACTERISTIC
- 1. Offer independent charging and discharging tests with a voltage measurement range of DC 0-5V and a continuously adjustable current up to 100A, meeting various battery testing needs.
- 2. In combined test mode, the current can reach up to 400A, suitable for high-current battery testing scenarios.
- 3. With large-capacity data storage, the device can automatically generate reports, facilitating user analysis and summarization of test results.
- 4. The multifunctional lithium battery tester integrates discharge, charging, and activation functions, streamlining the testing and maintenance process and improving work efficiency.
- 5. Multiple shutdown thresholds can be set, automatically stopping the test when the battery is fully charged or discharged to a safe limit, protecting both the battery and the device’s safety.

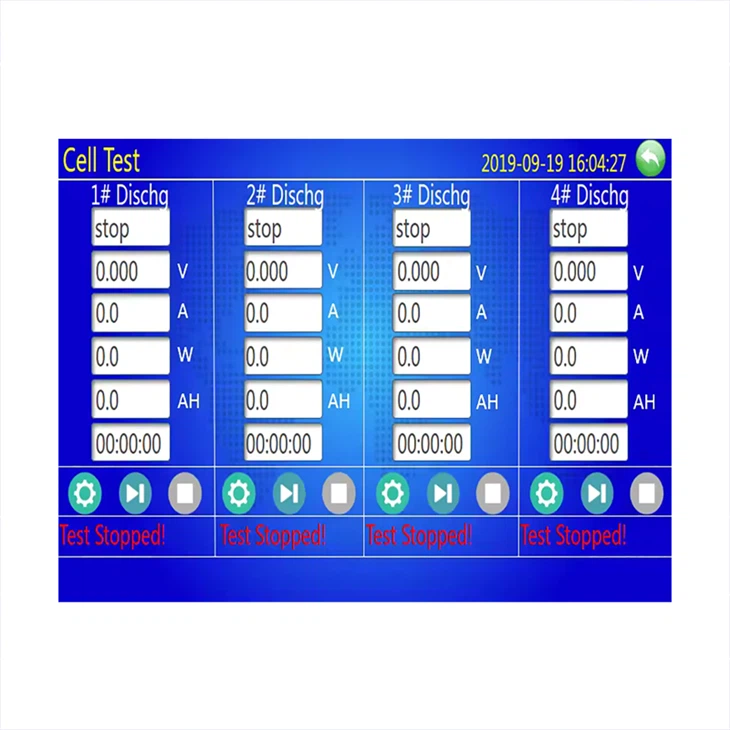

- 6. This lithium battery tester equipped with a 7-inch LCD large screen, it supports real-time display of test data and charts, touch operation, and a user-friendly menu design for simplified operation.
- 7. Intelligent ports support RS485, RJ45, CAN, and other data interfaces for communication with lithium-ion battery BMS, host computers, and other smart devices, enabling data synchronization and remote control.
