OVERVIEW

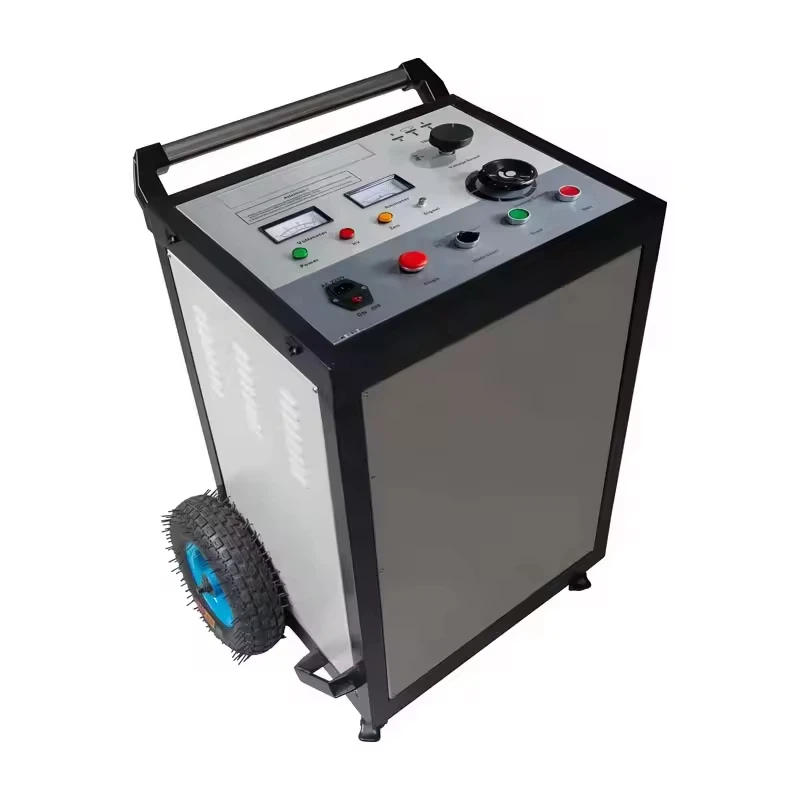

- The RDCD-II/535T is a high-voltage signal generator designed for cable fault detection, offering a reliable source for locating and pinpointing issues in power cables. This sophisticated, mobile unit is equipped with a DC high-voltage source, a storage capacitor, a discharge sphere, an auto-discharge system, and a voltage selector, all in a convenient, cart-based design.
- With a focus on precision and stability, it uses specialized high-voltage components and advanced high-frequency technology, resulting in a simple yet effective design. The generator is designed with the user in mind, maintaining the familiar feel of traditional high-voltage generation while incorporating a compact and secure circuit layout.
- It ensures a powerful and consistent impact for testing, with features like timed automatic impacts, manual control, and pressure resistance, making it a safe and efficient choice for cable testing professionals
.
CHARACTERISTIC
- The Cable Test HV Signal Generator produces high-voltage pulses that are consistent and easily manageable.

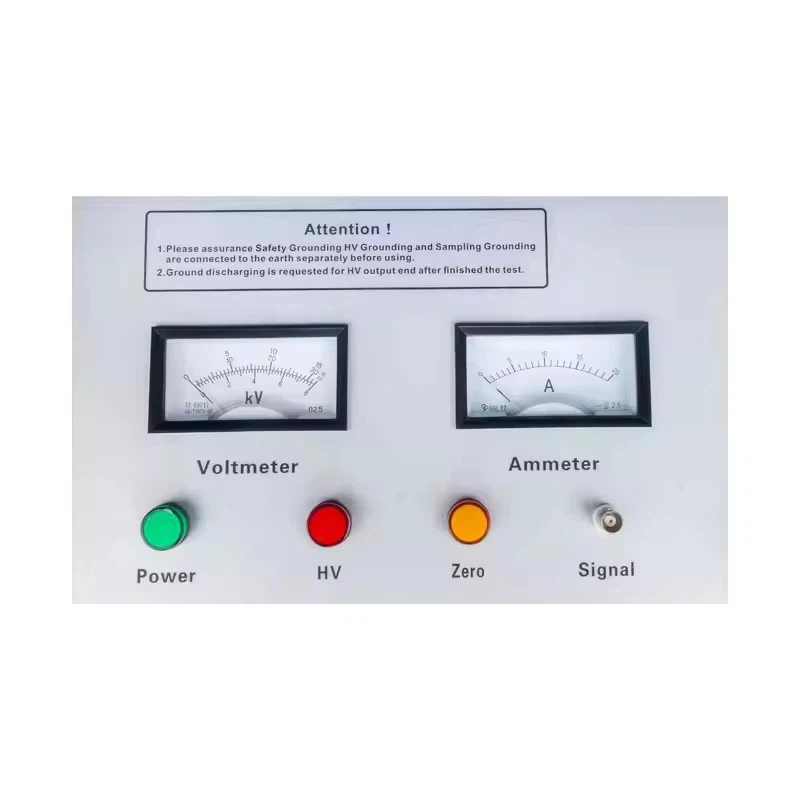

- Features dual 1.5-level LED displays for current and voltage, offering a straightforward and transparent view of the pulse discharge process.
- Offers precise and instantaneous high voltage measurement capabilities.
- It is equipped with a zero-start protection feature for added safety and dependability.

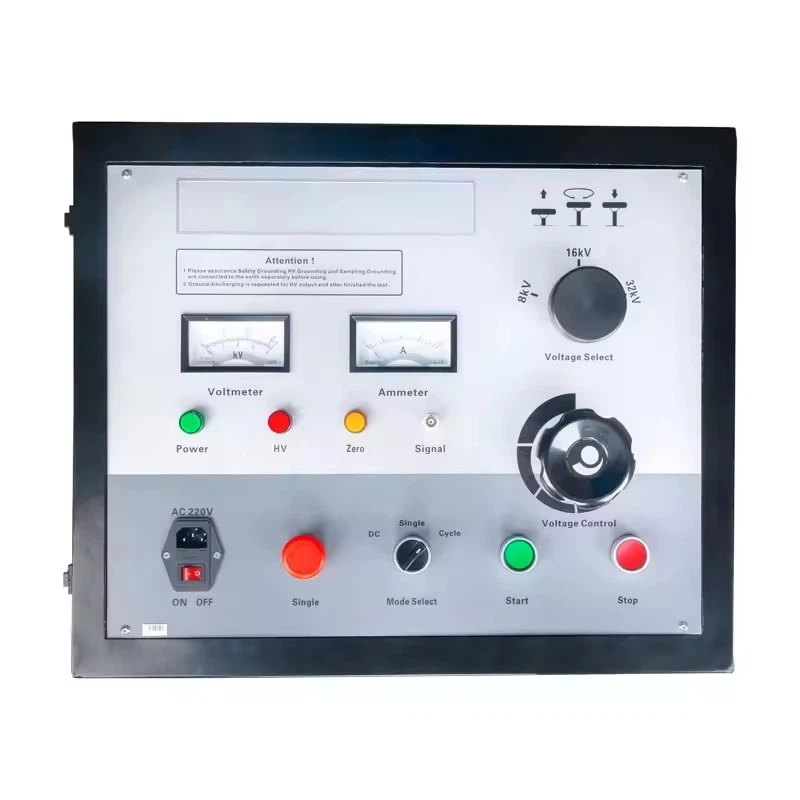

- Allows for easy switching between three voltage ranges and various capacitor capacities.
- They are designed with a unique high-voltage measurement feature that automatically discharges the internal capacitance when the unit is powered off.

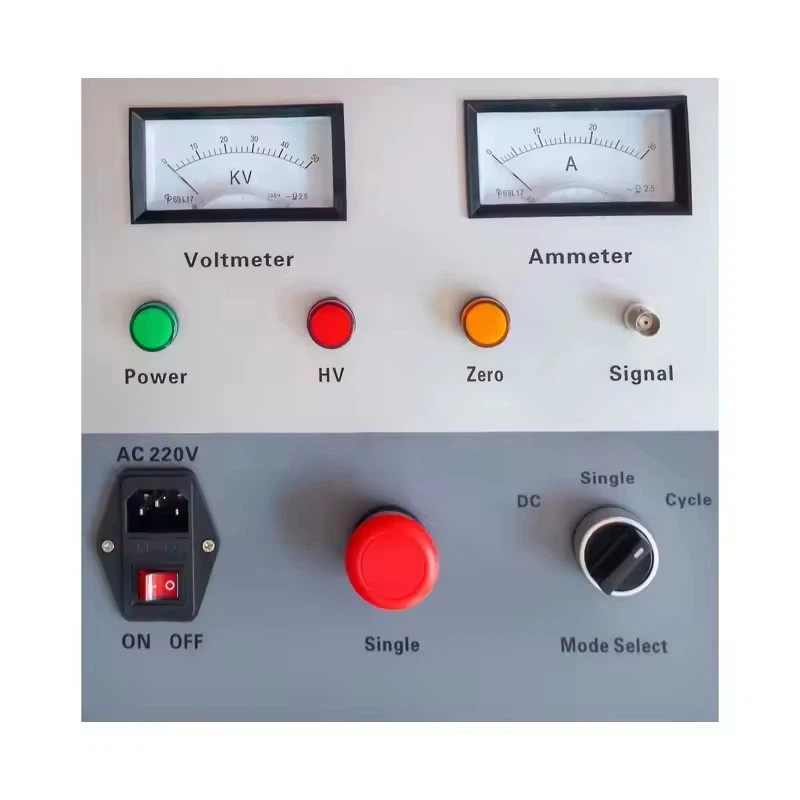

- Provides the option to select discharge time in either timed or manual mode.
- Includes a DC withstand voltage capability.
- Houses an internal, high-precision module for sampling cable fault waveforms.
- Boasts a user-friendly handcart design for effortless mobility.
