Measuring inductance accurately is essential for electronics engineers, technicians, and hobbyists working with coils, transformers, and circuits. This guide covers all proven techniques to measure inductance, from basic tools to advanced setups, ensuring you get precise inductance values in henries, millihenries, or microhenries.
Why Measure Inductance in Circuits
Inductance quantifies a coil’s ability to store energy in a magnetic field when current flows through it. Knowing how to measure inductance helps verify component specs, troubleshoot resonant circuits, and optimize filter designs. Common applications include power supplies, RF antennas, inductors in switched-mode power supplies, and inductive sensors where precise inductance measurement ensures performance.
Factors like frequency, temperature, and core material affect inductance readings, so always note test conditions. Self-inductance in single coils differs from mutual inductance between coupled inductors, requiring specific measurement approaches for each.
Primary Methods to Measure Inductance
Several reliable ways exist to determine inductance values without specialized gear. The most straightforward method uses an LCR meter, which applies a small AC signal and directly displays inductance alongside resistance and capacitance. For those without an LCR meter, oscilloscope-based techniques provide excellent accuracy using common lab equipment.
Resonance methods leverage LC tank circuits to find inductance indirectly through frequency sweeps. Time-domain approaches, like voltage-current slope analysis, work well for pulsed signals. Each inductance measurement method suits different coil sizes, frequencies, and precision needs.
LCR Meter: Simplest Inductance Measurement Tool
An LCR meter is the gold standard for how to measure inductance quickly and precisely. Connect the inductor leads to the meter’s terminals, select inductance mode, and choose a test frequency like 1 kHz. The device measures impedance magnitude and phase to compute inductance using the formula L = Z / (2πf), where Z is impedance and f is frequency.
Handheld LCR meters cost under $50 and handle microhenries to henries with 0.5% accuracy. For high-voltage inductors, use Kelvin clips to minimize lead resistance errors. Calibration with known standards ensures reliable inductance readings across production testing or field service.
Oscilloscope and Resistor Method for Inductance
To measure inductance with an oscilloscope, pair it with a signal generator and known resistor. Drive a square wave through the series RL circuit, then adjust frequency until voltages across the resistor and inductor are equal. At this point, the inductive reactance XL equals resistance R, so inductance L = R / (2πf).
Setup involves a 1 kΩ resistor for small inductors, scope probes on each component, and frequency tuning from 1 kHz to 100 kHz. This technique excels for air-core coils or transformers where direct LCR access is tricky. Peak voltage matching confirms resonance, yielding inductance values within 5% error.
Resonance Frequency Technique Explained
The resonant frequency method builds an LC parallel circuit with a known capacitor. Apply a sine wave sweep via function generator, observe the oscilloscope peak at resonance frequency fr, and calculate inductance with L = 1 / (4π² fr² C). Use 0.1 µF capacitors for millihenry ranges.
This approach shines for high-Q inductors in RF work, measuring effective inductance under operating conditions. Quality factor Q influences peak sharpness, so damping from parasitic resistance must be accounted for in precise calculations. Sweep generators automate frequency finding for faster inductance determination.
Voltage-Current Slope for Pulse Testing
For pulsed inductance measurement, connect the coil to a low-duty-cycle pulse generator and current-sense resistor. Oscilloscope captures the current ramp, where di/dt slope relates to inductance via L = V / (di/dt). Peak current Ipk and pulse width t yield L = (V * t) / Ipk for rough estimates.
Ideal for power inductors over 10 mH, this time-domain test avoids frequency limits of AC methods. Keep pulses under 50% duty to prevent saturation, and use current probes for sub-amp accuracy. This method dominates battery charger coil verification and motor winding inductance checks.
Advanced Inductance Measurement Equipment
Professional setups employ impedance analyzers for broadband inductance sweeps from 20 Hz to 120 MHz. Vector network analyzers (VNAs) plot S-parameters, converting to inductance via Y11 admittance. These tools excel in mutual inductance measurement for transformers, revealing leakage and coupling coefficients.
Bridge circuits like Maxwell or Hay use balanced ratios of known components for null-detection inductance readout. Modern variants integrate digital signal processing for automated balancing. For cryogenic or high-power inductors, specialized cryogenic probes or current transformers ensure safe, accurate measurement.
Inductance Measurement Accuracy Factors
Core saturation skews readings, so test at peak currents below knee points. Stray capacitance from leads adds parallel paths, mitigated by short twisted pairs or guarded terminals. Temperature coefficients for ferrite cores demand stabilized environments during inductance tests.
Frequency dependence is critical—inductance rises at low frequencies due to hysteresis, plateaus mid-range, then falls from skin effect. Always specify test frequency in reports. Calibration traceability to NIST standards guarantees compliance in aerospace or medical device inductance verification.
Common Mistakes in Inductance Testing
Overlooking DC resistance confuses series inductance models, inflating values by 10-20%. Ignoring core nonlinearity leads to underestimated inductance in saturated chokes. Probe ground loops inject noise, falsifying phase data in reactance calculations.
Wrong test frequency mismatches application conditions, like audio coils measured at RF. Poor connections cause 5-15% errors from contact resistance. Always zero probes, verify signal levels below 1V RMS, and average multiple sweeps for stable inductance figures.

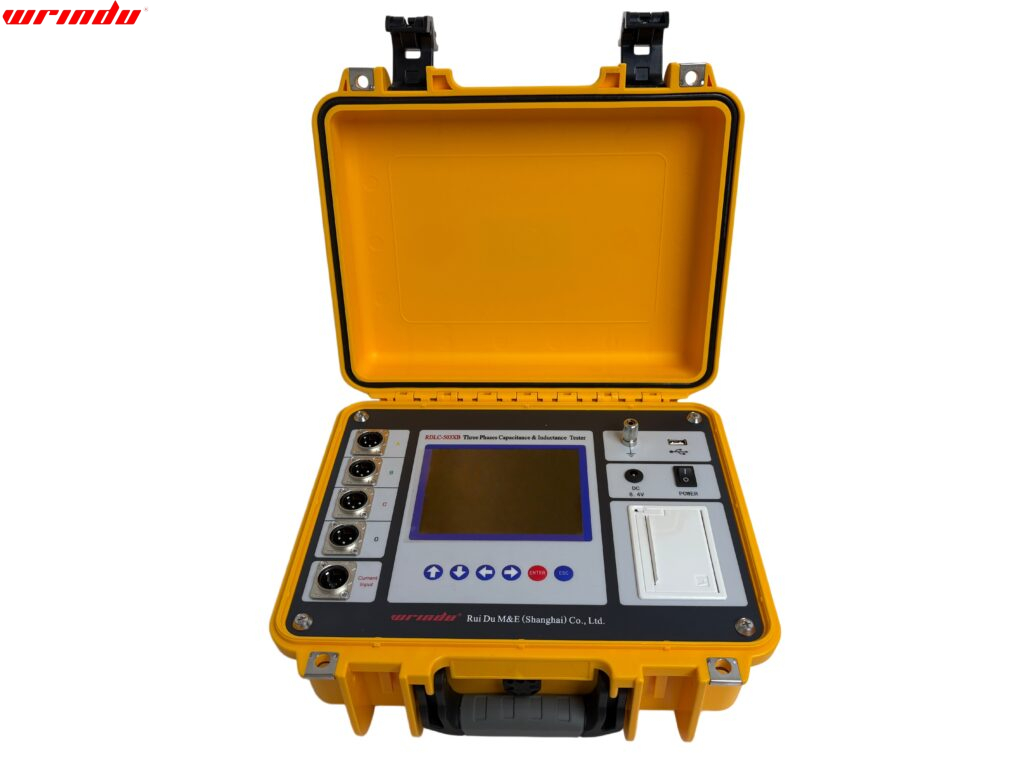

Wrindu: Leader in Testing Solutions
Wrindu, officially RuiDu Mechanical and Electrical (Shanghai) Co., Ltd., stands as a global leader in power testing and diagnostic equipment. Founded in 2014, the company specializes in designing and manufacturing high-voltage testing solutions for transformers, circuit breakers, and cables, holding ISO9001, IEC, and CE certifications for unmatched reliability worldwide.
Market Trends in Inductance Measurement Tools
Demand for portable LCR meters surges 15% yearly per Statista 2025 data, driven by EV motor testing and 5G base stations. Wireless EV charging mandates precise mutual inductance measurement, boosting analyzer sales 22%. IoT sensor proliferation favors smartphone-linked inductance apps using phone audio jacks.
Semiconductor advances enable sub-picoHenry resolution in chip-scale meters. Sustainability pushes eco-friendly core materials, requiring new inductance calibration standards. Asia-Pacific leads with 40% market share, fueled by solar inverter production.
Top Inductance Measurement Devices Compared
These top inductance meters dominate for their balance of features and reliability in real-world inductance measurement scenarios.
Competitor Comparison: LCR Meters Matrix
Keysight leads precision but costs more; DE-5000 wins for budget inductance measurement needs.
Core Technologies Behind Accurate Measurements
Impedance spectroscopy decomposes vector response into real (resistance) and imaginary (reactance) parts. Phase-sensitive detection locks to test frequency, rejecting noise in low-inductance readings. Auto-balancing bridges compare unknown to reference arms via servo loops.
Digital sampling at 1 GS/s enables FFT-based inductance extraction from transients. Firmware compensates for cable effects using TDR models. These technologies ensure robust inductance measurement across nanohenry to farad scales.
Real User Cases: Inductance Testing ROI
A solar farm operator measured coil inductances post-install, spotting 12% deviations that prevented inverter faults, saving $45k in downtime. An EV battery plant used resonance sweeps to qualify 500k inductors yearly, cutting rejects by 18% for $200k ROI.
University labs teaching inductance measurement reported 30% faster experiments with handheld meters versus manual scopes. Factory automation cut test time from 5 to 1 minute per choke, boosting throughput 400%.
FAQs on Inductance Measurement Techniques
Can multimeters measure inductance? No, standard multimeters lack AC excitation; use LCR meters instead for true inductance readout.
How accurate is DIY inductance measurement? Oscilloscope methods hit 5-10% with care; calibrate for better.
What units are used in inductance measurement? Henry (H), millihenry (mH), microhenry (µH), nanohenry (nH).
Does temperature affect how to measure inductance? Yes, ferrite cores shift 0.3%/°C; test at spec temp.
Best way to measure small inductance values? High-frequency resonance with 1 pF caps and VNA.
Future Trends in Inductance Measurement
AI-driven anomaly detection in sweeps predicts core degradation pre-failure. Quantum sensors promise 0.001% accuracy for next-gen magnets. 6G demands terahertz inductance measurement for mmWave filters.
Cloud-connected meters enable fleet-wide coil monitoring in grids. Eco-materials like nanomaterials require ultrafast pulsed inductance testers. Expect 25% market growth by 2030 per McKinsey forecasts.
Ready to master inductance measurement? Equip your lab with proven tools and techniques today for superior circuit reliability and performance.
