A practical way to calculate hipot test voltage for new assets is to start from service (rated) voltage, then apply the widely used “2V + 1000” rule and safety factors. This is often expressed as Vtest=1.1×(2Vnominal+1000), which adds a margin for manufacturing tolerances, field conditions, and long‑term insulation aging.
IEEE 400 & IEC 60060 Compliance: The Definitive Guide to HV Standards
What is the 2V + 1000 rule in hipot testing?
The 2V + 1000 rule is a common formula for setting hipot test voltage: twice the rated service voltage plus 1000 V. It provides a simple, conservative way to stress insulation without excessive damage risk when applied for short durations under controlled conditions.
From my experience on the factory floor in China, this rule is a starting point, not a substitute for IEC or IEEE standards. At Wrindu we often adjust it based on insulation structure, partial discharge behavior, and field failure history for each OEM or utility client.
How does the formula Vtest=1.1×(2Vnominal+1000) work?
This formula multiplies the 2V + 1000 base value by 1.1 to add a 10% margin. The 2V term accounts for overvoltage capability, while the extra 1000 V and 1.1 factor compensate for measurement tolerances and aging.

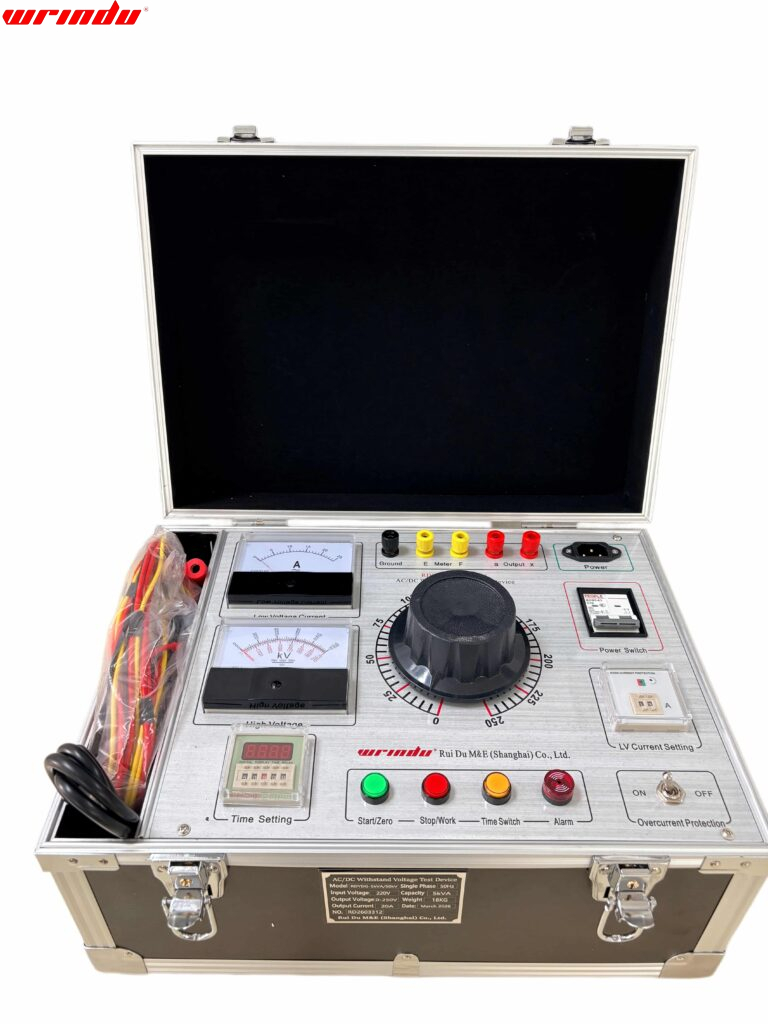

In practice, a 240 V device would be tested around 1.1×(2×240+1000)≈1.1×1480≈1628 V. At Wrindu, our hipot instruments allow engineers to enter this equation directly, then automatically ramp and dwell at the calculated target.
Why is hipot test voltage higher than service voltage?
Hipot voltage is intentionally higher to reveal insulation weaknesses that normal service voltage might not expose. The test stresses the dielectric so marginal voids, contamination, or manufacturing defects cause partial discharge or breakdown before field operation.
From project experience with Chinese transformer and cable OEMs, I have seen that running too close to service voltage often passes products that later fail under switching surges. A properly set hipot level reduces warranty failures and grid outages.
Which standards and rules guide hipot voltage selection?
Hipot voltage is usually guided by IEC, IEEE, UL, or local utility specifications. For power cables, standards like IEC 60502 and IEEE 400 recommend factors such as 1.5–2.0 times rated voltage for AC tests, with defined durations.
For low‑voltage equipment, product‑specific safety standards define exact test levels based on the 2V + 1000 concept. In Wrindu OEM and custom projects, we combine these standards with client internal specifications to select repeatable, auditable test recipes.
Typical hipot multipliers by asset type
The following table illustrates common engineering practice ranges; exact values must always follow applicable standards and customer specs.
How do AC and DC hipot formulas differ?
AC hipot tests apply a sinusoidal voltage, typically using a simple multiplier of the rated voltage, such as 2 × Uₒ for certain power cables. DC hipot tests may use 1.414 times the AC value to match peak stress or use specific DC formulas like 1.414(2VL+1000).
In the Wrindu lab, we often start from AC factory test recommendations and convert to DC when customers only have DC capability, applying derating factors to avoid over‑stressing polymeric insulation.
What is the relationship between hipot duration and test voltage?
The higher the hipot voltage, the shorter the recommended duration to avoid premature aging. Standards commonly specify 1 minute for AC withstand tests and 5–15 minutes for lower‑level DC tests.
On production lines in China, I’ve tuned dwell times so routine end‑of‑line tests run in seconds, while type and sample tests follow full‑duration standards. This balance keeps throughput high while maintaining insulation credibility.
How can China manufacturers calculate hipot voltage for OEM and custom projects?
Chinese manufacturers usually combine international standards with the client’s rated voltage, insulation category, and application. They calculate base hipot values with rules like 2V + 1000 or specified multipliers, then adapt for creepage, pollution degree, and environmental factors.
At Wrindu, we help OEM and custom clients build parameterized formulas into their MES or test benches. This ensures every variant—voltage class, frequency, or insulation material—automatically gets a compliant, traceable hipot setpoint.
Why do factory-floor engineers sometimes deviate from the “2V + 1000” rule?
Factory engineers may deviate when insulation design, materials, or partial discharge results show that the standard rule is either overly aggressive or too mild. They also adjust for repeated testing, as multiple high‑stress cycles can cumulatively age insulation.
From my experience on high‑volume lines, repeating a full 2V + 1000 test at in‑process, final, and sample stages can stress varnish or polymer interfaces. So we sometimes apply graded levels, maintaining one full‑stress test while lowering the others.
Example: step‑by‑step hipot calculation for a 10 kV cable
Consider a single‑core 10 kV rated power cable for a Chinese substation OEM project.
-
Nominal phase voltage Vnominal=10 kV (line‑to‑ground rating Uo).
-
AC factory test per IEC 60502: Vtest≈2.0×Uo=20 kV for 1 minute.
-
DC field test equivalent, per typical guidance: Vtest,DC≈1.5×Uo=15 kV for 5–15 minutes.
-
If applying the 2V + 1000 rule in volts: Vtest=2×10,000+1000=21,000 V, optionally with 1.1 factor to get ≈23.1 kV.
In Wrindu custom projects, we document which basis was used (IEC multiplier or 2V + 1000) on the nameplate test report for traceability.
Where does the formula Vtest=1.1×(2Vnominal+1000) fit into China factory QA workflows?
In many Chinese factories, that formula is used as a configurable template embedded in hipot testers or PLC logic. Operators simply enter the nominal service voltage, and the system computes, ramps, and times the test voltage automatically.
At Wrindu, we often integrate this math into turnkey test benches for OEM and wholesale customers, ensuring consistent implementation across shifts and production sites. It reduces human error and simplifies QA audits by international buyers.
Who benefits most from optimized hipot voltage in B2B supply chains?
Power utilities, substation EPCs, and high‑voltage equipment OEMs benefit most because optimized hipot levels reduce both infant failures and hidden damage from over‑testing. Battery, cable, transformer, and breaker manufacturers also gain from reduced scrap and clearer pass/fail criteria.
Wrindu’s core user base—utilities, grid companies, and industrial plants—relies on accurate hipot settings to validate insulation while preserving asset life. This is especially critical in export‑oriented Chinese factories that must pass stringent European and North American audits.
Does hipot voltage selection affect insulation aging and warranty risk?
Yes, too high a hipot voltage or excessive duration accelerates insulation aging, especially in polymers and organic materials. Conversely, too low a voltage risks passing marginal products that may fail under surges, increasing warranty and outage risk.
From failure analysis we’ve done with Wrindu customers, many early‑life breakdowns were traced to under‑stressed factory hipot, while some long‑term drifts were linked to overly aggressive routine tests. You need a balanced, data‑driven voltage strategy.
Are there practical limits when applying the 2V + 1000 rule to large assets?
Yes, very high‑voltage transformers, GIS, and long EHV cables may require tailored formulas rather than a simple 2V + 1000. At these levels, partial discharge, thermal effects, and test system capabilities require detailed engineering studies.
In large Chinese factories, we often cap test voltage according to bushing ratings, lab clearances, and available test transformer power. Wrindu engineers then combine staged tests, PD monitoring, and insulation resistance results to evaluate asset integrity.
Wrindu Expert Views
In our experience as a China‑based hipot equipment manufacturer, the 2V + 1000 rule and Vtest=1.1×(2Vnominal+1000) are valuable starting points, not rigid laws. For OEM and custom projects, we always anchor calculations in IEC/IEEE standards, then refine voltage and duration using partial‑discharge data, historical failure modes, and each customer’s risk tolerance. This approach gives our utility and factory clients a measurable reduction in in‑service insulation failures without over‑stressing assets during production testing.
How can a China factory standardize hipot formulas across OEM, custom, and wholesale orders?
A China factory can standardize by defining a central test matrix mapping each product family to a nominal voltage, insulation type, and approved hipot formula. These rules are then implemented in test software, with locked operator permissions.
Wrindu frequently delivers turnkey solutions where our hipot testers, software, and fixtures embed this matrix. OEM, custom, and wholesale variants all inherit consistent, auditable hipot criteria, which global buyers often verify during on‑site inspections.
Example matrix for hipot parameter selection
Below is a simplified example of how a China manufacturer or supplier could encode rules for various product categories.
In my experience, publishing a controlled matrix like this, backed by Wrindu equipment, is a powerful signal of professionalism to overseas buyers comparing China factories.
Why should overseas buyers choose a China hipot equipment supplier like Wrindu?
Overseas buyers benefit from Wrindu’s combination of factory‑floor experience, in‑house R&D, and deep familiarity with IEC, IEEE, and utility‑specific standards. As a China manufacturer, supplier, and OEM/ODM partner, Wrindu can customize hipot testers, fixtures, and software to match each customer’s internal formulas and workflows.
Because we design and build both the hardware and control logic, we can embed equations like Vtest=1.1×(2Vnominal+1000) directly into the test sequences. This helps global utilities, OEMs, and labs maintain consistent, defensible insulation testing across multiple plants and regions.
Is hipot voltage calculation different for wholesale, OEM, and custom batches?
The underlying physics is the same, but the level of documentation and flexibility differs. Wholesale batches often use standard catalog test recipes, OEM batches may require customer‑specified formulas, and custom batches may involve joint Wrindu‑customer engineering.
In China factories, we typically maintain separate recipe sets in the hipot system: one locked for standard wholesale orders and another configurable area for OEM and project‑based custom work. This separation keeps mass production efficient while still honoring specialized requirements.
Conclusion: How should engineers apply the 2V + 1000 rule and Vtest=1.1×(2Vnominal+1000) in practice?
Engineers should treat the 2V + 1000 rule and its 1.1× variant as practical, conservative starting points for hipot test voltage. These formulas must always be checked against IEC, IEEE, and product‑specific standards, then tuned for insulation design, test frequency, and asset criticality.
From Wrindu’s experience as a China manufacturer and OEM partner, the most reliable approach is to codify these formulas into a test matrix and digital workflows. That way, every new asset—from cables and transformers to battery systems—receives a consistent, traceable hipot test that balances safety, reliability, and long‑term performance.
Can I always use 2V + 1000 for any hipot test?No. The 2V + 1000 rule is a general guideline. Always confirm with applicable IEC, IEEE, or product‑specific standards and your customer’s specifications before finalizing hipot settings.
How do I convert AC hipot recommendations to DC test levels?A common approach is to multiply the AC RMS level by about 1.414 to get an equivalent DC peak, then consult standards that may specify lower DC factors and longer durations.
What happens if I set the hipot voltage too high?Excessively high hipot voltage or long dwell can prematurely age insulation, create micro‑cracks, or cause failures that would not occur in normal service, increasing scrap and hidden reliability risks.
Do I need different hipot formulas for cables and transformers?Yes. Cables, transformers, motors, and electronic devices follow different IEC/IEEE standards and multipliers, even if the rated voltage is similar, due to different insulation geometries and stresses.
Can Wrindu customize hipot testers to my internal formulas?Yes. As a China factory and OEM supplier, Wrindu routinely embeds customer‑specific formulas such as Vtest=1.1×(2Vnominal+1000) into test software, including custom limits, ramps, and dwell times.
