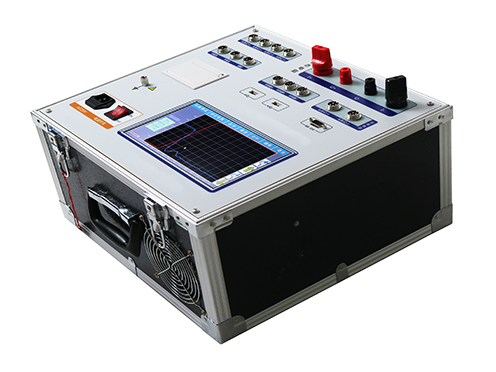

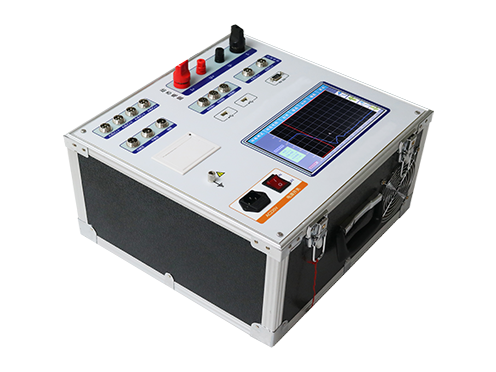

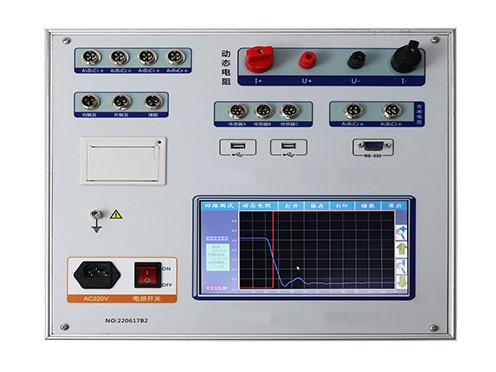

Recently, Wrindu’s new generation RDGC-8C Digital Circuit Breaker Analyzer has been launched, emerging as a crucial tool for assessing circuit breaker performance. This advanced tester facilitates dynamic analysis of various circuit breakers, accurately measuring the mechanical dynamic characteristics of high-voltage circuit breakers, including those with low oil, high oil, vacuum, SF6, and other voltage levels.
Circuit Breaker Analyzer
Facilitates Dynamic Analysis Of Various Circuit Breakers
Outstanding Performance, User-Friendly Operation
1. Embedded industrial control machine with a CortexTM-A8-based mainboard, operating at 1GHz, featuring 1GB flash memory and a rapid 16-second boot time. The 9-inch color screen, Windows operating system, user-friendly interface, and touchscreen supporting Chinese and English input provide great convenience for on-site operators.
01
2. Our Digital Circuit Breaker Analyzer is equipped with a high-speed thermal printer for on-site printing of test data, ensuring efficient and convenient operation.
02
3. Integrated operation power supply eliminates the need for on-site secondary power sources. It provides an adjustable power supply of DC6 to 270V, with a current of 20A, supporting low-voltage operation tests for circuit breakers.
03
4. Equipped with linear, rotation, universal, and laser sensors (optional), brackets, and dedicated multifunctional connectors, installation is exceptionally convenient and straightforward.
04
Wide Applicability, Comprehensive Testing
01
1. Applicable to all models of SF6 switches, GIS electrical combinations, vacuum switches, and oil switches produced domestically and internationally.
02
2. Single switch operation yields complete data and graphics, simultaneously displaying test data and graphics on the screen. Speed calculations are done instantly, eliminating the need for retesting.
03
3. The main unit can store 30,000 test data sets (expandable with a storage card) and features an internal real-time clock for easy archiving.
Multiple Interface Design, Easy Connectivity
It has two USB interfaces for connecting a mouse to operate the device or directly saving data to a USB drive, facilitating data upload to a computer for analysis and storage. There is also an optional RS232 interface for online and optional WIFI operations.
Comprehensive Measurement, Multifunctional Features
01
1. Capable of measuring 12 metal contact breakpoints, 6 main breakpoints, 6 auxiliary breakpoints, 3/6 circuit breaker resistances, 1 dynamic resistance, 1 speed, and optional measurement of 3 speeds.
02
2. The bathtub is equipped with a built-in envelope wire for analyzing and comparing single switch test values and switch vibration frequencies.
03
3. Internal anti-interference circuitry meets the reliability requirements of 500KV substations.
The launch of the RDGC-8C Digital Circuit Breaker Analyzer signifies a significant step forward in electrical system maintenance and safe operation. Its outstanding performance and comprehensive testing capabilities will provide reliable technical support for the power industry, ensuring the safe operation of power systems.
